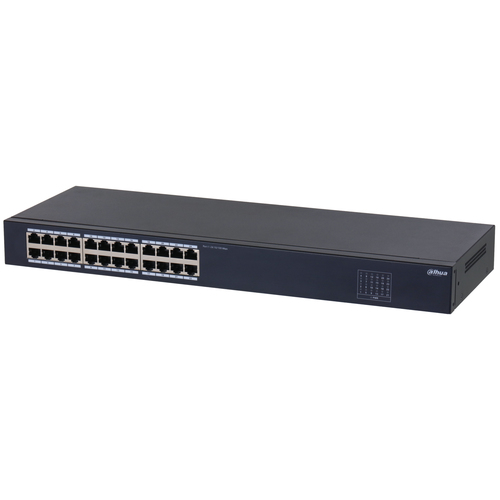

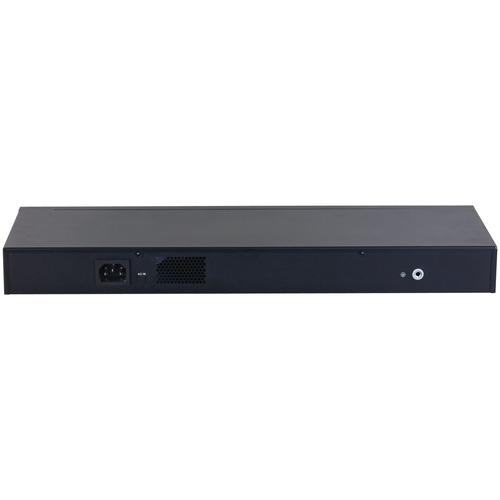

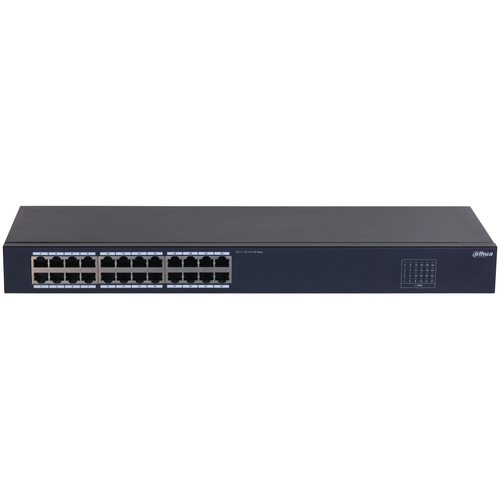

SF1024 Unmanaged L2 Fast Ethernet (10/100) Black
Model SF1024Part no. DH-SF1024EAN 6923172597502
38 specifications
- Weight1.64 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 1.64 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SF1024
- Part number
- DH-SF1024
- EAN / UPC
- 6923172597502
- Also known as
- Dahua Technology SF1024 Unmanaged L2 Fast Ethernet (10/100) Black
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 4.8 Gbit/s |
| Forwarding rate | 3.57 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
| Packet buffer memory | 4 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Iron |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.7 A |
| Power consumption (max) | 2.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 440 mm |
| Height | 43.7 mm |
| Weight | 1.64 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 273 mm |
| Package depth | 523 mm |
| Package height | 109 mm |
| Package weight | 2.55 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
