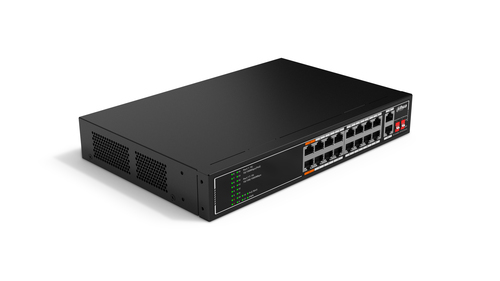

PoE SF1018LP Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model SF1018LPPart no. DH-SF1018LPEAN 6923172572004
49 specifications
- Weight1.6 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity18
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 1.6 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 18
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SF1018LP
- Part number
- DH-SF1018LP
- EAN / UPC
- 6923172572004
- Also known as
- Dahua Technology PoE SF1018LP Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| Link aggregation | No |
| Spanning tree protocol | No |
| VLAN support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 7.2 Gbit/s |
| Forwarding rate | 5.3568 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 562129.2 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.83 A |
| Power consumption (max) | 135 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 135 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 189.5 mm |
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 299 mm |
| Package depth | 369 mm |
| Package height | 81 mm |
| Package weight | 2.28 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
