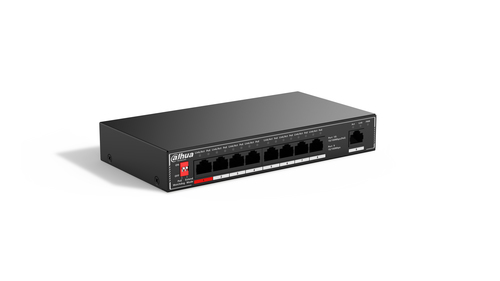

PoE SF1009P Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model SF1009PPart no. DH-SF1009PEAN 6923172571434
42 specifications
- Weight490 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
- MAC address table2048 entries
Overview
- Weight
- 490 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- MAC address table
- 2048 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SF1009P
- Part number
- DH-SF1009P
- EAN / UPC
- 6923172571434
- Also known as
- Dahua Technology PoE SF1009P Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
42 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 9 |
| Uplink ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1.8 Gbit/s |
| Forwarding rate | 1.34 Mpps |
| Packet buffer memory | 0.768 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Iron |
| LED indicators | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| DC input voltage | 48 - 57 V |
| Input current | 2 A |
| Power consumption (max) | 96 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 96 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 490 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 267 mm |
| Package depth | 239 mm |
| Package height | 77 mm |
| Package weight | 1.3 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
