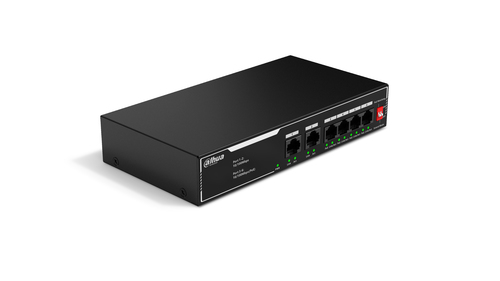

PoE SF1006LP Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model SF1006LPPart no. DH-SF1006LPEAN 6923172571403
43 specifications
- Weight560 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- MAC address table2048 entries
Overview
- Weight
- 560 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- MAC address table
- 2048 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SF1006LP
- Part number
- DH-SF1006LP
- EAN / UPC
- 6923172571403
- Also known as
- Dahua Technology PoE SF1006LP Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
43 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 6 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.89 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194 mm |
| Depth | 108.1 mm |
| Height | 35 mm |
| Weight | 560 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 303 mm |
| Package depth | 262 mm |
| Package height | 72 mm |
| Package weight | 1.11 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
