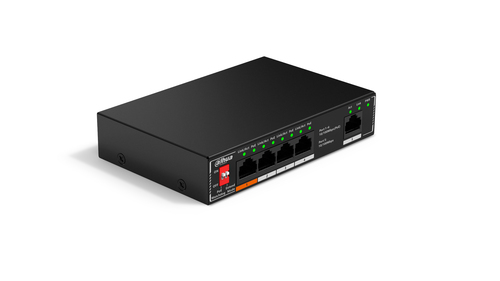

PoE SF1005P Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model SF1005PPart no. DH-SF1005PEAN 6923172571427
32 specifications
- Weight300 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- Switching capacity1.8 Gbit/s
Overview
- Weight
- 300 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Switching capacity
- 1.8 Gbit/s
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- SF1005P
- Part number
- DH-SF1005P
- EAN / UPC
- 6923172571427, 6939554917769
- Also known as
- Dahua Technology PoE SF1005P Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
32 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Uplink ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 1.8 Gbit/s |
| Forwarding rate | 0.744 Mpps |
| Packet buffer memory | 0.125 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 300 g |
