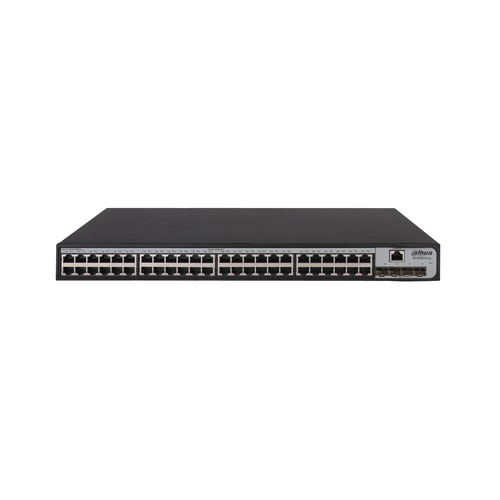

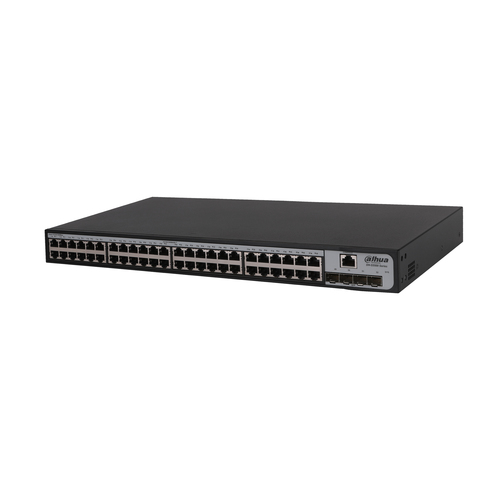

Aggregation S5500-48GT4GF-AC Managed L2 Gigabit Ethernet (10/100/1000) Black
Model S5500-48GT4GF-ACPart no. DH-S5500-48GT4GF-AC
44 specifications
- Weight3.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- Networking standardsIEEE 802.1p, IEEE 802.1x
- Switching capacity256 Gbit/s
Overview
- Weight
- 3.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Networking standards
- IEEE 802.1p, IEEE 802.1x
- Switching capacity
- 256 Gbit/s
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- S5500-48GT4GF-AC
- Part number
- DH-S5500-48GT4GF-AC
- Also known as
- Dahua Technology Aggregation S5500-48GT4GF-AC Managed L2 Gigabit Ethernet (10/100/1000) Black
Specifications
44 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1x |
| Port mirroring | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Protocol-based VLAN, VLAN mapping, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 256 Gbit/s |
| Forwarding rate | 78 Mpps |
| Static route | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | AAA, HWTACACS, RADIUS |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | STP, RSTP, MSTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 41 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 230 mm |
| Height | 43.6 mm |
| Weight | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
