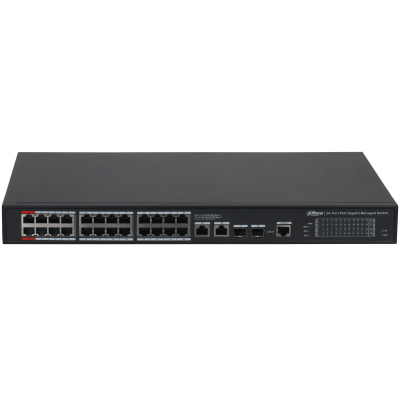

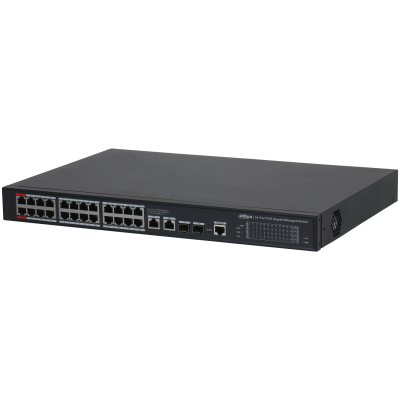

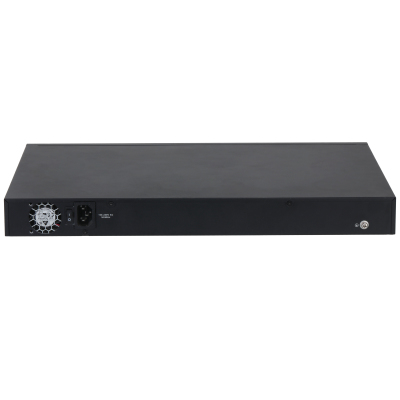

S4228-24GT-360 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver
Model S4228-24GT-360Part no. DH-S4228-24GT-360
50 specifications
- Weight3.4 kg
- ColourBlack, Silver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity26
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 3.4 kg
- Colour
- Black, Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 26
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- S4228-24GT-360
- Part number
- DH-S4228-24GT-360
- Also known as
- Dahua Technology S4228-24GT-360 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver
Specifications
50 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.664 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Reset button | Yes |
Performance
| Specification | Value |
|---|---|
| Telnet | Yes |
| Mean time between failures (MTBF) | 467125.73 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 3.5 A |
| Power consumption (max) | 360 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 360 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 525 mm |
| Package depth | 410 mm |
| Package height | 110 mm |
| Package weight | 4.51 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
