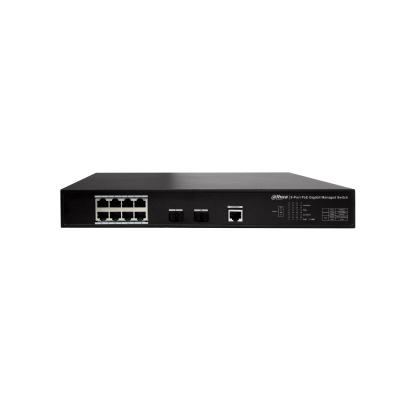

Dahua Technology S1000-8TP network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Model S1000-8TPEAN 6939554913037
31 specifications
- Type1U
- Weight2.66 kg
- ColourBlack
- Switch layerL2
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 2.66 kg
- Colour
- Black
- Switch layer
- L2
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- S1000-8TP
- Part number
- S1000-8TP
- EAN / UPC
- 6939554913037
- Also known as
- Dahua Technology S1000-8TP network switch L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Specifications
31 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 7.6 Gbit/s |
| Forwarding rate | 4.17 Mpps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 220 mm |
| Height | 44.4 mm |
| Weight | 2.66 kg |
