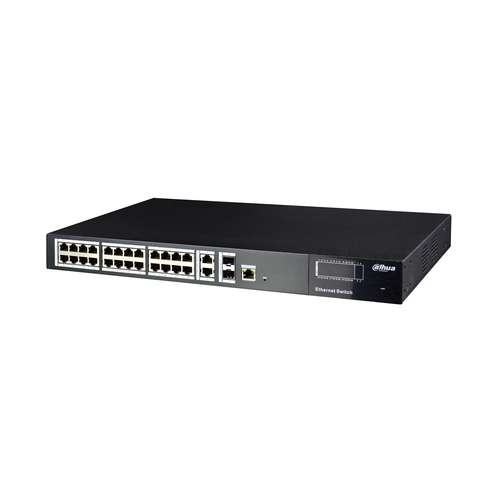

PFS4228P370 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Model PFS4228P370
39 specifications
- Type1U
- Weight3.73 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity28
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 3.73 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 28
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS4228P370
- Part number
- PFS4228P370
- Also known as
- Dahua Technology PFS4228P370 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 24.8 Gbit/s |
| Throughput | 9.52 Mpps |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Surge protection | Yes |
| Surge protection voltage | 2 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 263 mm |
| Height | 44.5 mm |
| Weight | 3.73 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
