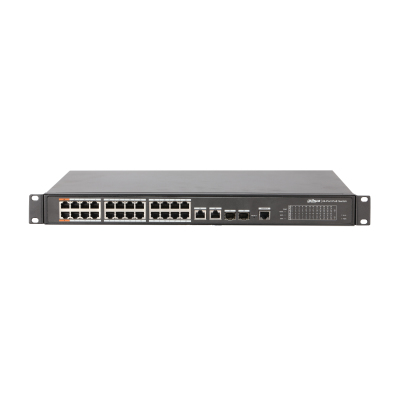

PFS4226-24ET-360 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Model PFS4226-24ET-360EAN 5902887023699
42 specifications
- Type1U
- Weight3.51 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 3.51 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS4226-24ET-360
- Part number
- PFS4226-24ET-360
- EAN / UPC
- 5902887023699, 6939554912917
- Also known as
- Dahua Technology PFS4226-24ET-360 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Specifications
42 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 6.55 Mpps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| IP-MAC-Port binding | Yes |
| Password protection | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1/V2C/V3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 360 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.51 kg |
