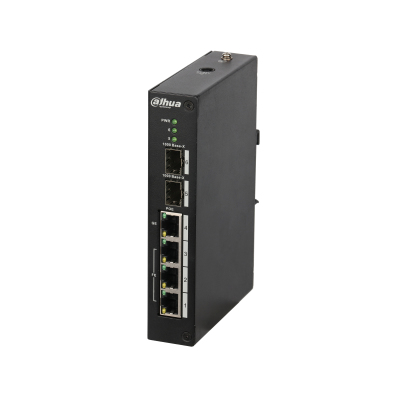

PFS4206-4P-96 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model PFS4206-4P-96EAN 6939554912788
37 specifications
- Weight480 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-X
Overview
- Weight
- 480 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-X
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS4206-4P-96
- Part number
- PFS4206-4P-96
- EAN / UPC
- 6939554912788
- Also known as
- Dahua Technology PFS4206-4P-96 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
37 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 3 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 6.8 Gbit/s |
| Forwarding rate | 4.91 Mpps |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1/V2C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 48 - 57 V |
| Power protection features | Overload |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 96 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 480 g |
