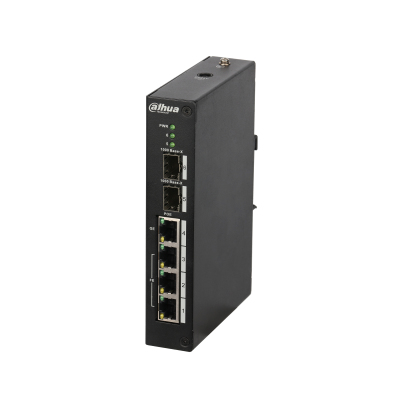

PFS4206-4P-120 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model PFS4206-4P-120EAN 6939554912795
31 specifications
- Weight480 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- Networking standardsIEEE 802.3af, IEEE 802.3at
- MAC address table8000 entries
Overview
- Weight
- 480 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Networking standards
- IEEE 802.3af, IEEE 802.3at
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS4206-4P-120
- Part number
- PFS4206-4P-120
- EAN / UPC
- 6939554912795
- Also known as
- Dahua Technology PFS4206-4P-120 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
31 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 6.8 Gbit/s |
| Forwarding rate | 4.91 Mpps |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| DC input voltage | 48 - 57 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 480 g |
