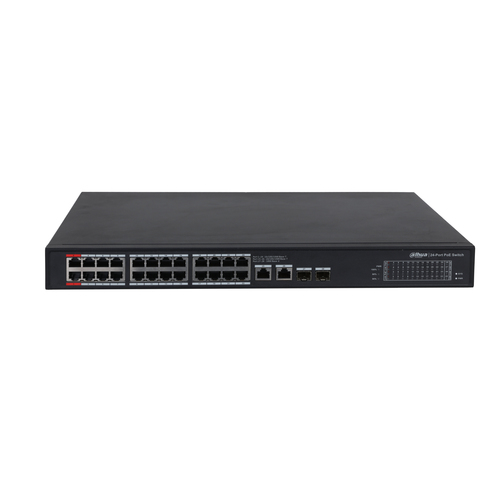

PoE PFS3228-24GT-360 Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model PFS3228-24GT-360Part no. DH-PFS3228-24GT-360EAN 6939554950766
31 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity26
- Ethernet LAN data rates10,100,1000 Mbit/s
- Switching optical modules typeGigabit Ethernet
- MAC address table8000 entries
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Switching optical modules type
- Gigabit Ethernet
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS3228-24GT-360
- Part number
- DH-PFS3228-24GT-360
- EAN / UPC
- 6939554950766
- Also known as
- Dahua Technology PoE PFS3228-24GT-360 Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
31 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.688 Mpps |
| Packet buffer memory | 4 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 190 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 360 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 527 mm |
| Package depth | 412 mm |
| Package height | 110 mm |
