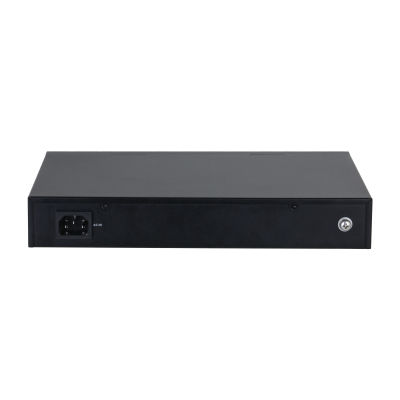

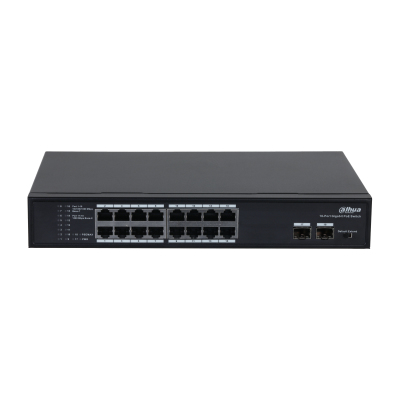

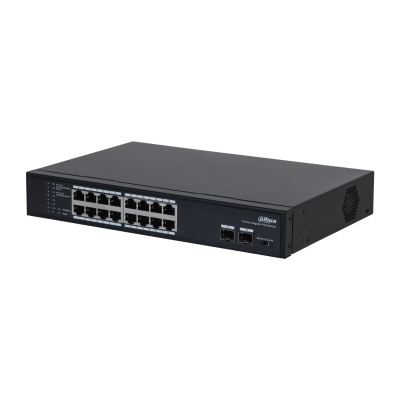

PoE PFS3218-16GT-135 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model PFS3218-16GT-135EAN 6923172582409
47 specifications
- Weight1.62 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- Switching optical modules typeGigabit Ethernet
Overview
- Weight
- 1.62 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Switching optical modules type
- Gigabit Ethernet
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS3218-16GT-135
- Part number
- PFS3218-16GT-135
- EAN / UPC
- 6923172582409
- Also known as
- Dahua Technology PoE PFS3218-16GT-135 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
47 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.784 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9600 |
| Packet buffer memory | 4.1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Iron |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 135 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 135 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 285 mm |
| Depth | 189.5 mm |
| Height | 43.7 mm |
| Weight | 1.62 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 369 mm |
| Package depth | 299 mm |
| Package height | 81 mm |
| Package weight | 2.34 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
