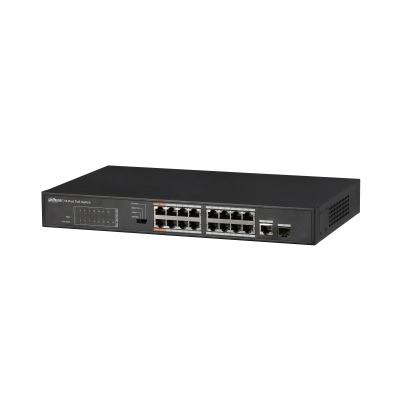

PFS3117-16ET-135 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model PFS3117-16ET-135EAN 6939554955679
31 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table4000 entries
- Power over Ethernet (PoE)Yes
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 4000 entries
- Power over Ethernet (PoE)
- Yes
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS3117-16ET-135
- Part number
- PFS3117-16ET-135
- EAN / UPC
- 6939554955679
- Also known as
- Dahua Technology PFS3117-16ET-135 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
31 specifications in 8 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 5.2 Gbit/s |
| Forwarding rate | 3.87 Mpps |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 135 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 200 mm |
| Height | 43 mm |
