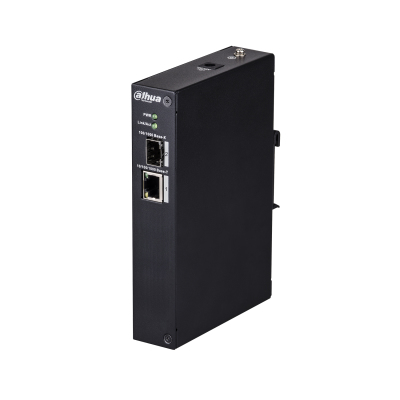

PFS3102-1T network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Model PFS3102-1T
26 specifications
- Weight420 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity1
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 420 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 1
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS3102-1T
- Part number
- PFS3102-1T
- Also known as
- Dahua Technology PFS3102-1T network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Specifications
26 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 6.8 Gbit/s |
| Forwarding rate | 2.98 Mpps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Power consumption (typical) | 3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 420 g |
