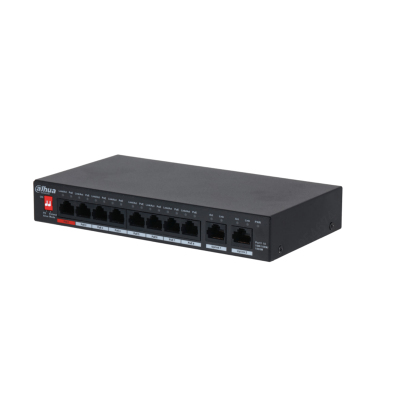

PoE PFS3010-8GT-96 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model PFS3010-8GT-96Part no. DH-PFS3010-8GT-96EAN 6939554950001
34 specifications
- Weight500 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 500 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS3010-8GT-96
- Part number
- DH-PFS3010-8GT-96
- EAN / UPC
- 6939554950001
- Also known as
- Dahua Technology PoE PFS3010-8GT-96 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
34 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 96 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 96 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 303 mm |
| Package depth | 262 mm |
| Package height | 72 mm |
| Package weight | 1.32 kg |
