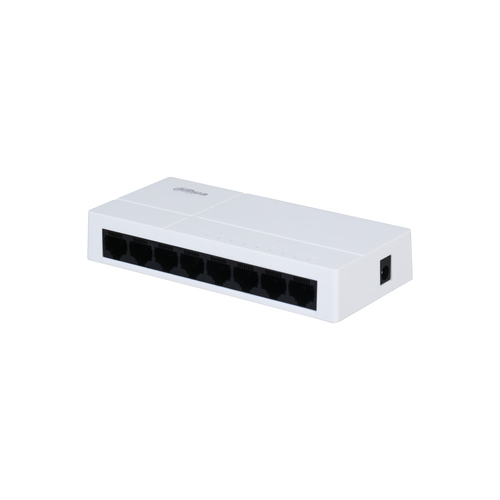

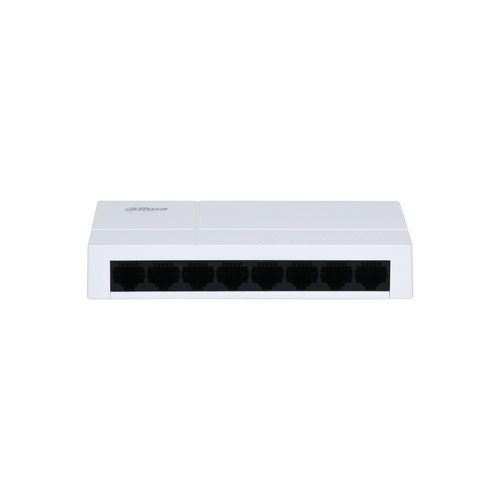

PFS3008-8GT-L Unmanaged L2 Gigabit Ethernet (10/100/1000) White
Model PFS3008-8GT-LPart no. DH-PFS3008-8GT-L-V2EAN 6923172582058
39 specifications
- Weight160 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 160 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- PFS3008-8GT-L
- Part number
- DH-PFS3008-8GT-L-V2
- EAN / UPC
- 6923172582058
- Also known as
- Dahua Technology PFS3008-8GT-L Unmanaged L2 Gigabit Ethernet (10/100/1000) White
Specifications
39 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.904 Mpps |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| Housing material | Plastic |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 5051758.14 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62.4 mm |
| Depth | 132.9 mm |
| Height | 24 mm |
| Weight | 160 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 136 mm |
| Package height | 153 mm |
| Package weight | 290 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
