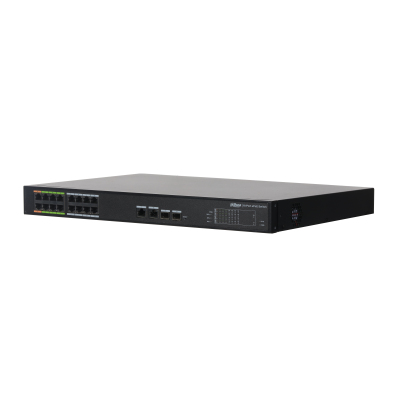

LR2218-16ET-240 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model LR2218-16ET-240EAN 5706998424365
36 specifications
- Weight3.12 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
- 10G supportYes
- MAC address table4000 entries
Overview
- Weight
- 3.12 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- 10G support
- Yes
- MAC address table
- 4000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- LR2218-16ET-240
- Part numbers
- LR2218-16ET-240, DH-LR2218-16ET-240
- EAN / UPC
- 5706998424365
- Also known as
- Dahua Technology LR2218-16ET-240 network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 5.36 Mpps |
| Packet buffer memory | 2.75 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| MAC address filtering | Yes |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1/V2C/V3 |
| Switching protocols | IEEE802.3af, IEEE802.3a |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.12 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
