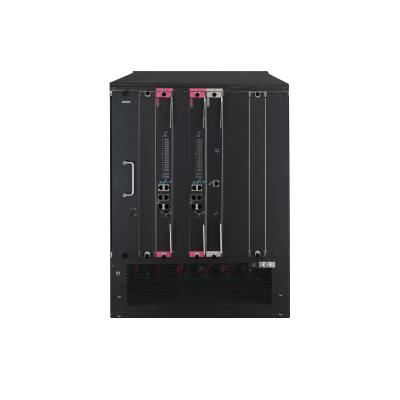

DH-S8610 network switch Managed L3
10G Ethernet (100/1000/10000) Black
Model DH-S8610
43 specifications
- Weight64.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity1
- 10G supportYes
- Switching capacity256000 Gbit/s
Overview
- Weight
- 64.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- 10G support
- Yes
- Switching capacity
- 256000 Gbit/s
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S8610
- Part number
- DH-S8610
- Also known as
- Dahua Technology DH-S8610 network switch Managed L3 10G Ethernet (100/1000/10000) Black
Specifications
43 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 256000 Gbit/s |
| Throughput | 8400 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Fanless | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 2430 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 620 mm |
| Depth | 440 mm |
| Height | 660 mm |
| Weight | 64.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 870 mm |
| Package depth | 790 mm |
| Package height | 870 mm |
| Package weight | 90.5 kg |
