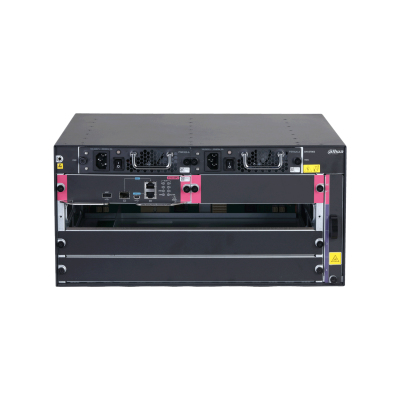

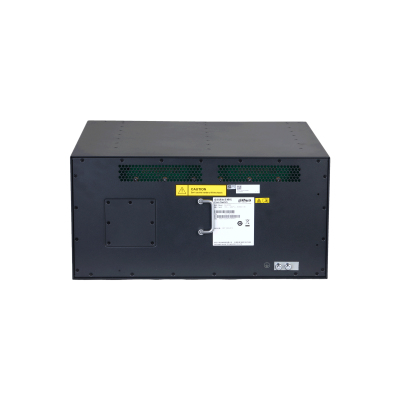

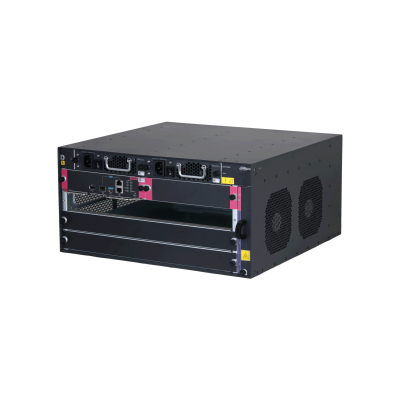

DH-S7803 network switch Managed L3 Black
Model DH-S7803
50 specifications
- Weight18 kg
- ColourBlack
- Switch typeManaged
- 10G supportYes
- MAC address table320000 entries
- Power sourceAC
Overview
- Weight
- 18 kg
- Colour
- Black
- Switch type
- Managed
- 10G support
- Yes
- MAC address table
- 320000 entries
- Power source
- AC
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S7803
- Part number
- DH-S7803
- Also known as
- Dahua Technology DH-S7803 network switch Managed L3 Black
Specifications
50 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| IPv4 routes | 16000 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, MVRP, Port-based VLAN, Protocol-based VLAN, VLAN mapping |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 320000 entries |
| Switching capacity | 168000 Gbit/s |
| Forwarding rate | 36000 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9600 |
| Packet buffer memory | 24 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 320000 entries |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | BGP4, BGP4+, IS-IS, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2, RIPng |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Power consumption (max) | 490 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 436 mm |
| Depth | 420 mm |
| Height | 216 mm |
| Weight | 18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 600 mm |
| Package depth | 585 mm |
| Package height | 375 mm |
| Package weight | 20.2 kg |
