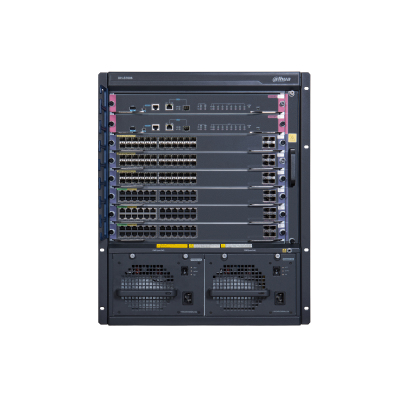

DH-S7606 network switch Managed L3+ Black
Model DH-S7606
38 specifications
- Weight77 kg
- ColourBlack
- Switch typeManaged
- Console portRJ-45
- Port mirroringYes
- Switching capacity25600 Gbit/s
Overview
- Weight
- 77 kg
- Colour
- Black
- Switch type
- Managed
- Console port
- RJ-45
- Port mirroring
- Yes
- Switching capacity
- 25600 Gbit/s
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S7606
- Part number
- DH-S7606
- Also known as
- Dahua Technology DH-S7606 network switch Managed L3+ Black
Specifications
38 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Policy-based routing | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, VLAN mapping |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 25600 Gbit/s |
| Forwarding rate | 12000 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 1 |
| IGMP entries | 3 |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | RIPng, VRRP |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv6 tracert |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| DC input voltage | 48 - 60 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 436 mm |
| Depth | 575 mm |
| Height | 420 mm |
| Weight | 77 kg |
