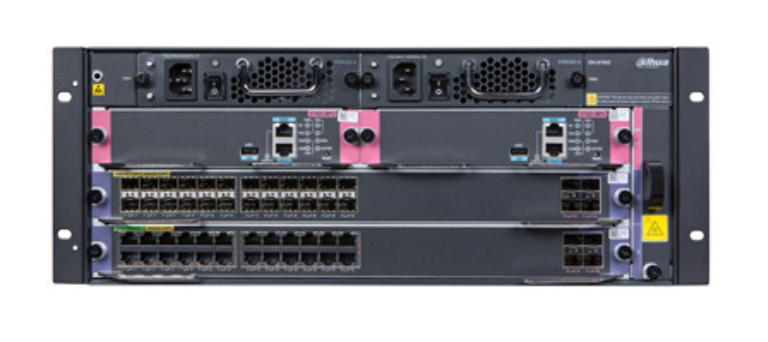

DH-S7602 network switch Managed L2/L3
10G Ethernet (100/1000/10000) Black
Model DH-S7602
34 specifications
- Weight27 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
- 10G supportYes
- Switching capacity128000 Gbit/s
Overview
- Weight
- 27 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- 10G support
- Yes
- Switching capacity
- 128000 Gbit/s
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S7602
- Part number
- DH-S7602
- Also known as
- Dahua Technology DH-S7602 network switch Managed L2/L3 10G Ethernet (100/1000/10000) Black
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 128000 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | VRRP |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| DC input voltage | 48 - 60 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 436 mm |
| Depth | 175 mm |
| Height | 420 mm |
| Weight | 27 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
