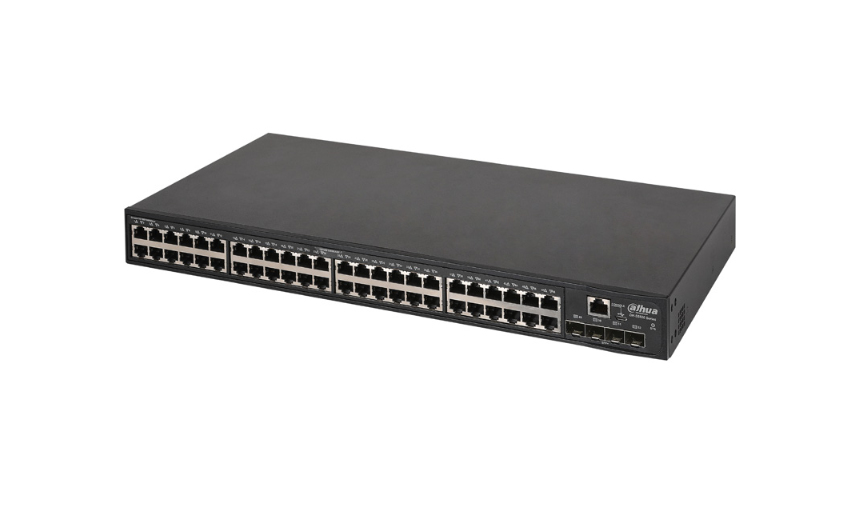

Aggregation DH-S5500-48GT4XF-E network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
Model DH-S5500-48GT4XF-E
48 specifications
- Weight3.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
- MAC address table16000 entries
Overview
- Weight
- 3.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S5500-48GT4XF-E
- Part number
- DH-S5500-48GT4XF-E
- Also known as
- Dahua Technology Aggregation DH-S5500-48GT4XF-E network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Routing entries | 1024 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 336 Gbit/s |
| Forwarding rate | 132 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 1024 |
| Access Control List (ACL) IPv6 entries | 512 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | STP, RSTP, MSTP, PVST |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 19 W |
| Power consumption (max) | 44 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 230 mm |
| Height | 43.6 mm |
| Weight | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 540 mm |
| Package depth | 340 mm |
| Package height | 90 mm |
| Package weight | 4.4 kg |
