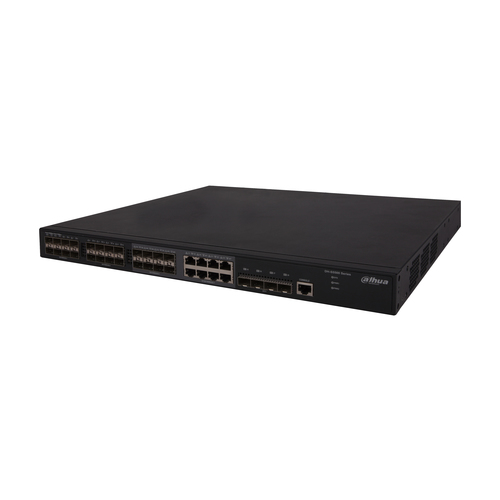

DH-S5500-24GF4XF-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Model DH-S5500-24GF4XF-EEAN 6939554939891
32 specifications
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity28
- Networking standardsIEEE 802.1x
- Switching capacity256 Gbit/s
- Access Control List (ACL)Yes
Overview
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 28
- Networking standards
- IEEE 802.1x
- Switching capacity
- 256 Gbit/s
- Access Control List (ACL)
- Yes
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S5500-24GF4XF-E
- Part number
- DH-S5500-24GF4XF-E
- EAN / UPC
- 6939554939891
- Also known as
- Dahua Technology DH-S5500-24GF4XF-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Specifications
32 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x |
| 10G support | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 256 Gbit/s |
| Throughput | 96 Mpps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | STP, RSTP, MSTP, PVST |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 36 - 72 V |
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 360 mm |
| Height | 43.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
