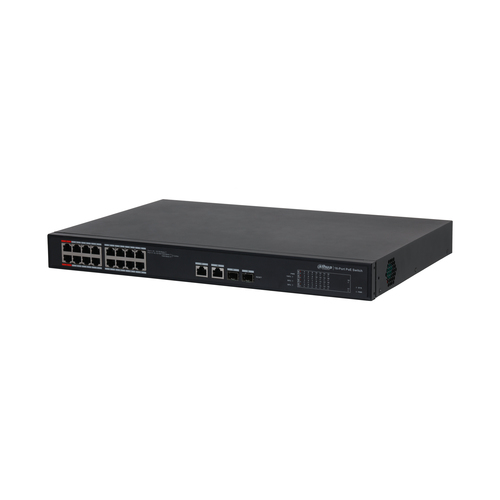

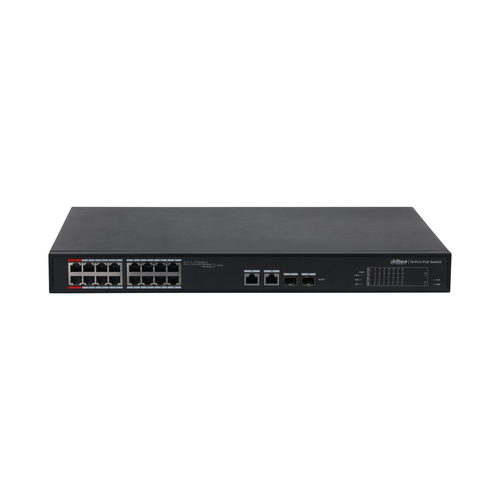

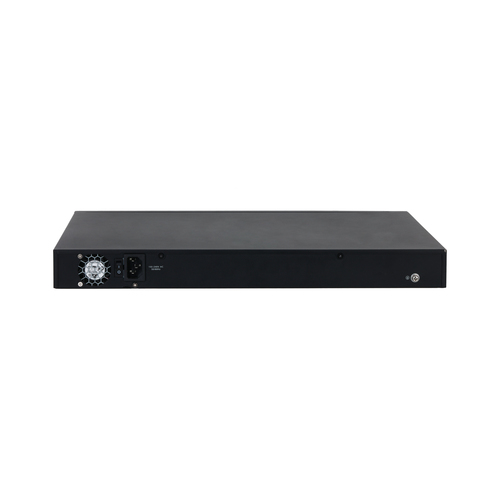

PoE DH-S4101-16ET2GF-240-C network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DH-S4101-16ET2GF-240-C
40 specifications
- Weight3.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 3.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-S4101-16ET2GF-240-C
- Part number
- DH-S4101-16ET2GF-240-C
- Also known as
- Dahua Technology PoE DH-S4101-16ET2GF-240-C network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Cloud-managed | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 7.2 Gbit/s |
| Forwarding rate | 5.36 Mpps |
| Packet buffer memory | 4 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 371069 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2 A |
| Power consumption (typical) | 240 W |
| Power consumption (max) | 240 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 528 mm |
| Package depth | 412 mm |
| Package height | 112 mm |
| Package weight | 4.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE; FCC |
