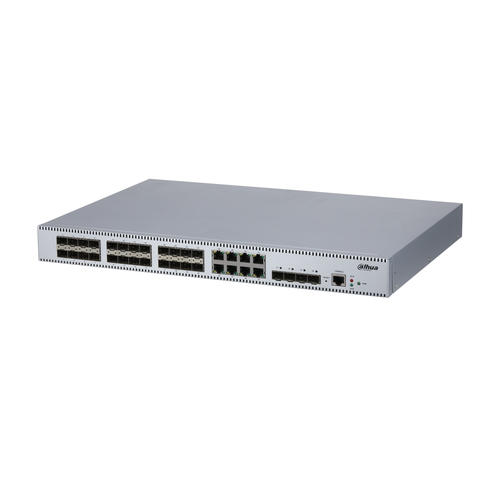

DH-PFS5936-24GF8GT4XF network switch Managed L2+ Gigabit Ethernet (10/100/1000)
Model DH-PFS5936-24GF8GT4XF
43 specifications
- Weight3.6 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
- MAC address table32768 entries
- Power sourceAC
Overview
- Weight
- 3.6 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- MAC address table
- 32768 entries
- Power source
- AC
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS5936-24GF8GT4XF
- Part number
- DH-PFS5936-24GF8GT4XF
- Also known as
- Dahua Technology DH-PFS5936-24GF8GT4XF network switch Managed L2+ Gigabit Ethernet (10/100/1000)
Specifications
43 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| Fiber ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| IPv4 routes | 128 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32768 entries |
| Switching capacity | 221 Gbit/s |
| Forwarding rate | 107 Mpps |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| MAC address entries | Static MAC address entries |
| Security algorithms | SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 15 W |
| Power consumption (max) | 46 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 360 mm |
| Depth | 440 mm |
| Height | 43.6 mm |
| Weight | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 528 mm |
| Package depth | 412 mm |
| Package height | 112 mm |
| Package weight | 4.75 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
