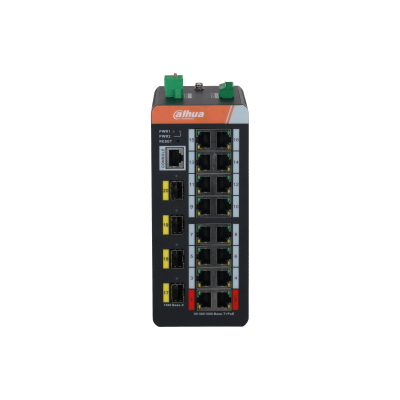

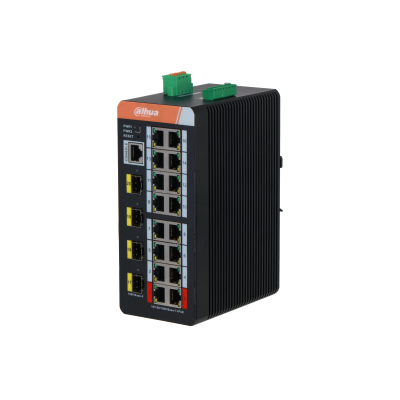

PoE DH-PFS4420-16GT-DP-V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Model DH-PFS4420-16GT-DP-V2
36 specifications
- Weight1.35 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- Port mirroringYes
- Transmission distance (max)0.25 km
- MAC address table8000 entries
Overview
- Weight
- 1.35 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Port mirroring
- Yes
- Transmission distance (max)
- 0.25 km
- MAC address table
- 8000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS4420-16GT-DP-V2
- Part number
- DH-PFS4420-16GT-DP-V2
- Also known as
- Dahua Technology PoE DH-PFS4420-16GT-DP-V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.25 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 54 Gbit/s |
| Forwarding rate | 28.28 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Security algorithms | SNMP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| LED indicators | Yes |
| DIN rail mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 15 W |
| Power consumption (max) | 240 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 125.4 mm |
| Height | 175 mm |
| Weight | 1.35 kg |
