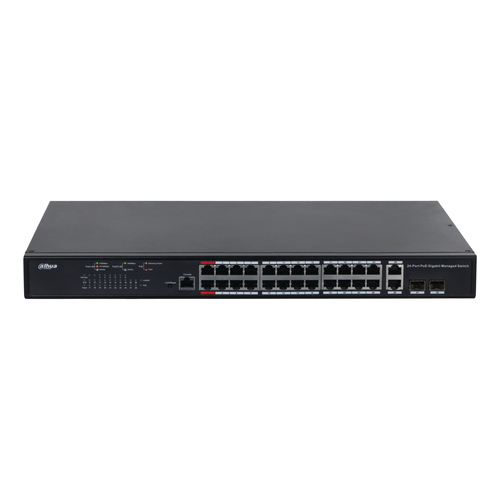

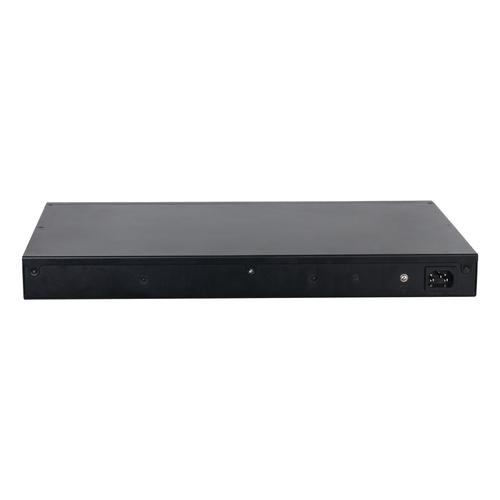

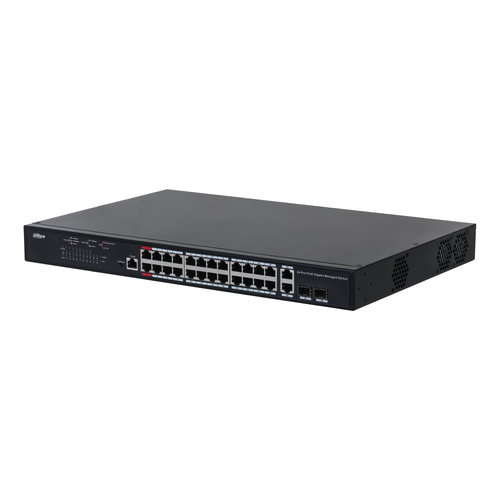

PoE DH-PFS4226-24GT-230 network switch Unmanaged L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DH-PFS4226-24GT-230
54 specifications
- Weight4 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 4 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS4226-24GT-230
- Part number
- DH-PFS4226-24GT-230
- Also known as
- Dahua Technology PoE DH-PFS4226-24GT-230 network switch Unmanaged L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
54 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2+ |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| IPv4 routes | 16 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Galvanized steel |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power consumption (max) | 270 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 230 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 290.7 mm |
| Height | 43.3 mm |
| Weight | 4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 522 mm |
| Package depth | 415 mm |
| Package height | 75 mm |
| Package weight | 5 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
