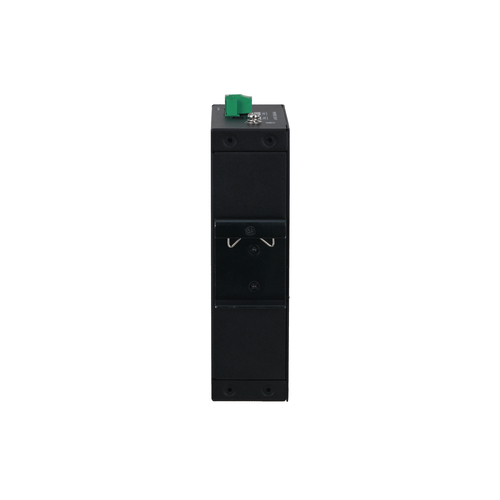

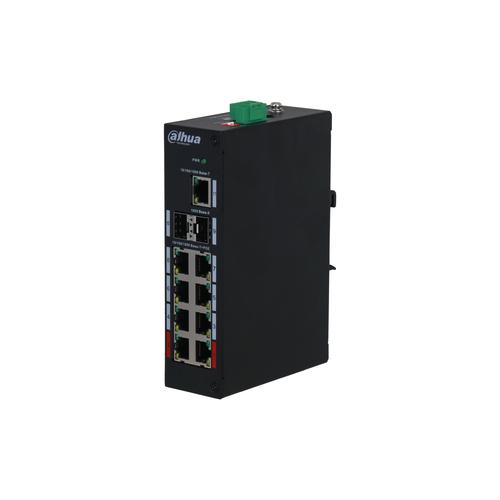

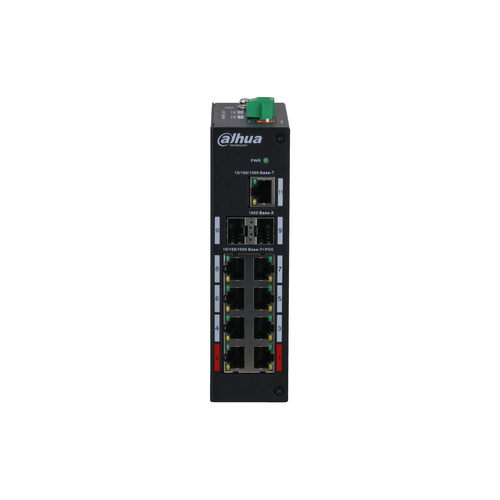

PoE DH-PFS3211-8GT-120 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DH-PFS3211-8GT-120
30 specifications
- Weight670 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
- Transmission distance (max)0.25 km
Overview
- Weight
- 670 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- Transmission distance (max)
- 0.25 km
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS3211-8GT-120
- Part number
- DH-PFS3211-8GT-120
- Also known as
- Dahua Technology PoE DH-PFS3211-8GT-120 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
30 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 9 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.25 km |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 33 Gbit/s |
| Forwarding rate | 16.37 Mpps |
| Packet buffer memory | 1.75 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 120 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 110 mm |
| Height | 42 mm |
| Weight | 670 g |
