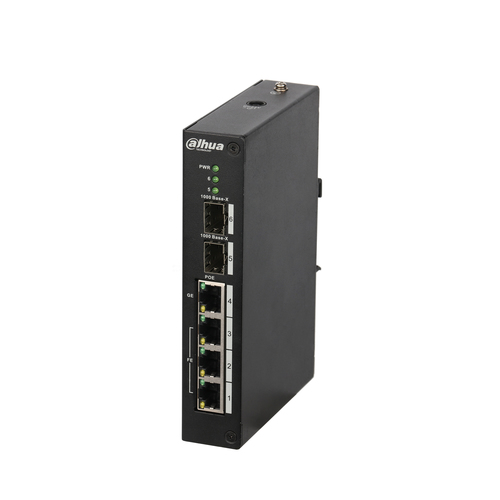

PoE DH-PFS3206-4P-96 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DH-PFS3206-4P-96EAN 5709728377153
33 specifications
- Weight480 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- Ethernet LAN data rates10,100,1000 Mbit/s
- Fiber ethernet cabling technology1000BASE-X
Overview
- Weight
- 480 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Fiber ethernet cabling technology
- 1000BASE-X
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS3206-4P-96
- Part number
- DH-PFS3206-4P-96
- EAN / UPC
- 5709728377153
- Also known as
- Dahua Technology PoE DH-PFS3206-4P-96 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
33 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 6.8 Gbit/s |
| Forwarding rate | 4.91 Mpps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power, Status |
| DIN rail mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 48 - 57 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 96 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 480 g |
