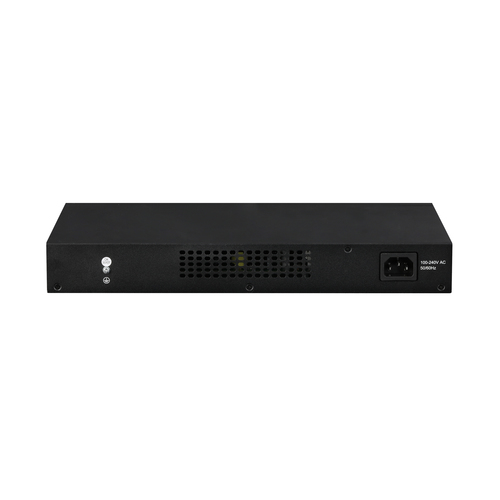

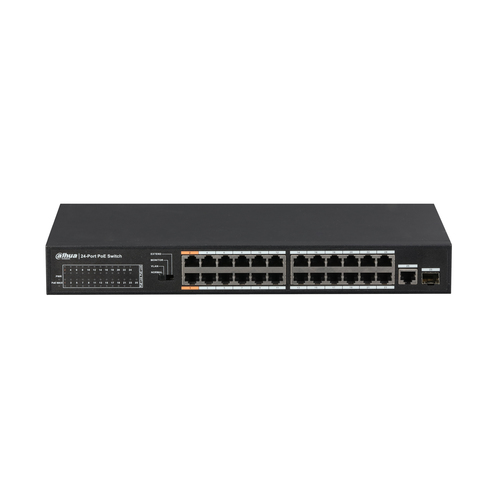

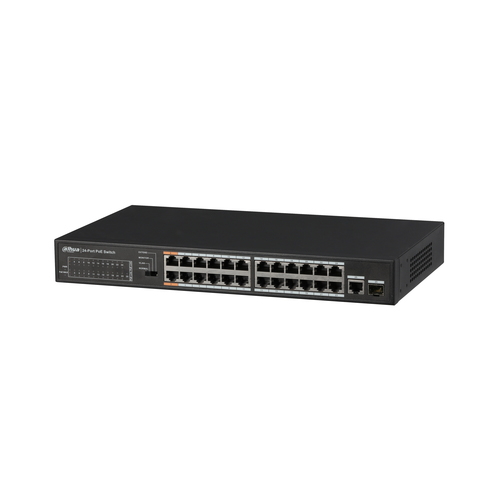

PoE DH-PFS3125-24ET-190 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DH-PFS3125-24ET-190
38 specifications
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table4000 entries
- Power sourceAC
- Power over Ethernet (PoE)Yes
Overview
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 4000 entries
- Power source
- AC
- Power over Ethernet (PoE)
- Yes
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS3125-24ET-190
- Part number
- DH-PFS3125-24ET-190
- Also known as
- Dahua Technology PoE DH-PFS3125-24ET-190 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
38 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 6.8 Gbit/s |
| Forwarding rate | 5.06 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 4 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 200 mm |
| Height | 43 mm |
