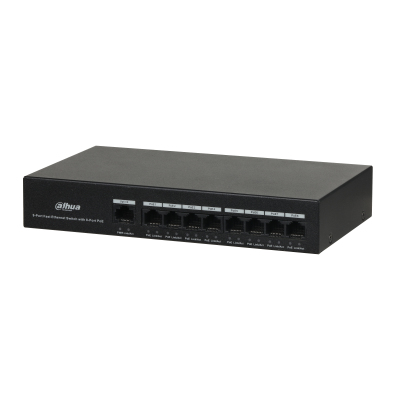

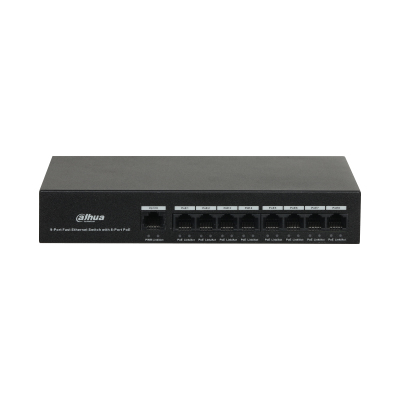

PoE DH-PFS3009-8ET-65 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DH-PFS3009-8ET-65EAN 6939554912320
22 specifications
- Weight700 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 700 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-PFS3009-8ET-65
- Part number
- DH-PFS3009-8ET-65
- EAN / UPC
- 6939554912320
- Also known as
- Dahua Technology PoE DH-PFS3009-8ET-65 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
22 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1.8 Gbit/s |
| Forwarding rate | 1.339 Mpps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 115 mm |
| Height | 35 mm |
| Weight | 700 g |
