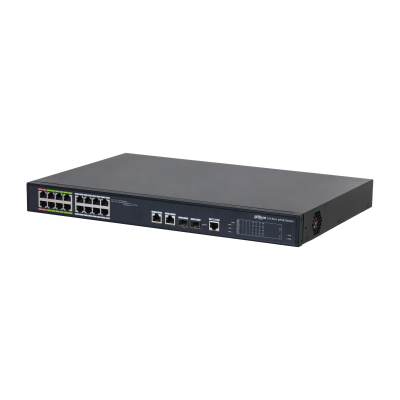

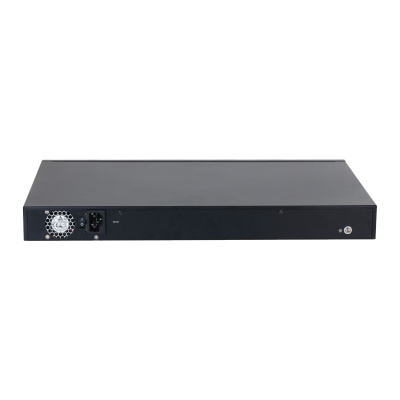

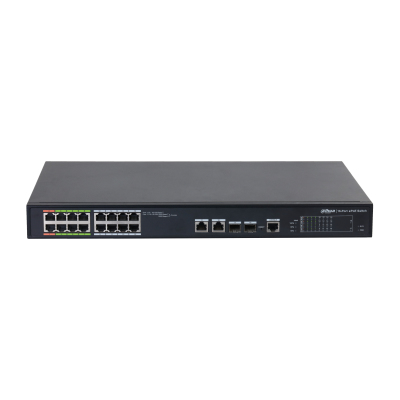

ePoE DH-LR2218-16ET-240-V2 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DH-LR2218-16ET-240-V2EAN 6923172541260
46 specifications
- Weight3.14 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table4 entries
Overview
- Weight
- 3.14 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 4 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-LR2218-16ET-240-V2
- Part number
- DH-LR2218-16ET-240-V2
- EAN / UPC
- 6923172541260
- Also known as
- Dahua Technology ePoE DH-LR2218-16ET-240-V2 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
46 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
| Console port | RJ-45/USB Type-C |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 31 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4 entries |
| Switching capacity | 8.8 Gbit/s |
| Forwarding rate | 5.36 Mpps |
| Packet buffer memory | 0.34 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv2, SNMPv3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Power consumption (typical) | 240 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 530 mm |
| Package height | 415 mm |
| Package weight | 4.12 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE; FCC |
