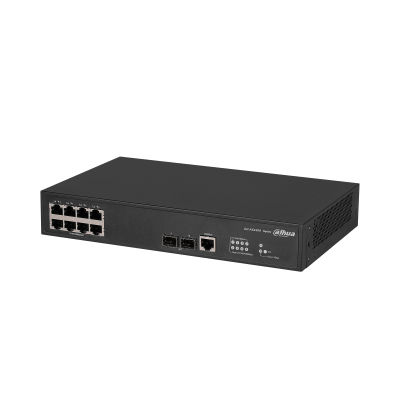

Access DH-AS4300-8GT2GF network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Black
Model DH-AS4300-8GT2GFEAN 6923172533432
57 specifications
- Weight1.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table16 entries
Overview
- Weight
- 1.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 16 entries
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- DH-AS4300-8GT2GF
- Part number
- DH-AS4300-8GT2GF
- EAN / UPC
- 6923172533432
- Also known as
- Dahua Technology Access DH-AS4300-8GT2GF network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Black
Specifications
57 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| IPv4 routes | 1 |
| IPv6 routes | 1 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| Number of VLANs | 4 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| IP-MAC-Port binding | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH-2 |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | STP/RSTP/MSTP, PVST, RRPP |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.45 A |
| Power consumption (typical) | 7 W |
| Power consumption (max) | 12 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 266 mm |
| Depth | 161 mm |
| Height | 43.6 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 370 mm |
| Package depth | 280 mm |
| Package height | 86 mm |
| Package weight | 2.2 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
