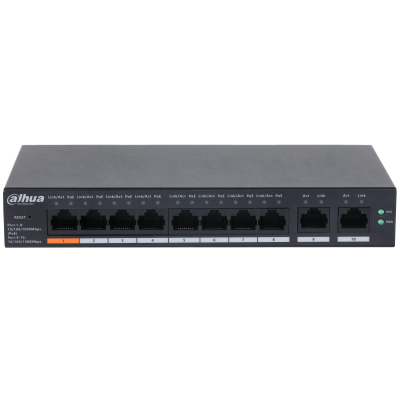

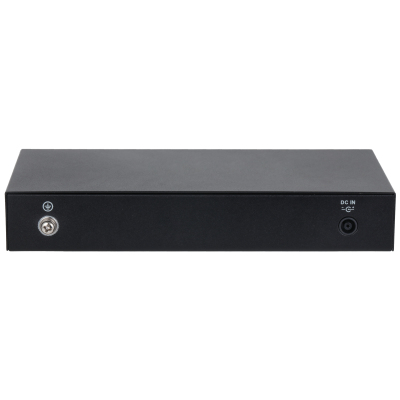

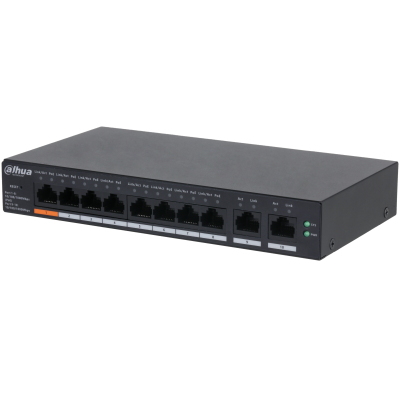

CS4010-8GT-60 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
Model CS4010-8GT-60Part no. DH-CS4010-8GT-60EAN 6923172566218
44 specifications
- TypeDesktop/Wall-Mounting
- Weight550 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
Overview
- Type
- Desktop/Wall-Mounting
- Weight
- 550 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- CS4010-8GT-60
- Part number
- DH-CS4010-8GT-60
- EAN / UPC
- 6923172566218
- Also known as
- Dahua Technology CS4010-8GT-60 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
Specifications
44 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 15360 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Design
| Specification | Value |
|---|---|
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| Power consumption (typical) | 65 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106 mm |
| Depth | 190 mm |
| Height | 30 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 244 mm |
| Package depth | 256 mm |
| Package height | 87 mm |
| Package weight | 1.18 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
