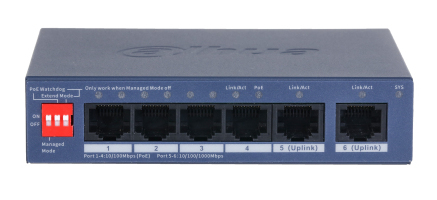

PoE CS4006-4ET2GT-36 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Blue
Model CS4006-4ET2GT-36
55 specifications
- TypeDesktop/Wall-Mounting
- Weight200 g
- ColourBlue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
Overview
- Type
- Desktop/Wall-Mounting
- Weight
- 200 g
- Colour
- Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- CS4006-4ET2GT-36
- Part number
- CS4006-4ET2GT-36
- Also known as
- Dahua Technology PoE CS4006-4ET2GT-36 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Blue
Specifications
55 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1Q |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 4.8 Gbit/s |
| Forwarding rate | 3.57 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Blue |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 2039146.92 h |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| DC input voltage | 53 V |
| Input current | 0.8 A |
| Power consumption (max) | 42.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84 mm |
| Depth | 115 mm |
| Height | 27 mm |
| Weight | 200 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Package width | 114 mm |
| Package depth | 195 mm |
| Package height | 83 mm |
| Package weight | 720 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
