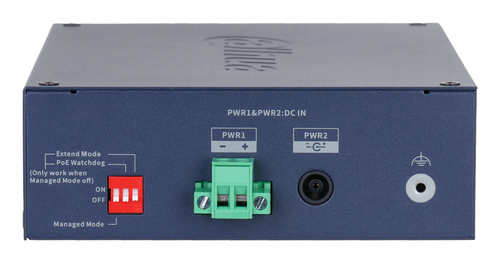

CHS4210-8GT-110 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Dark Blue
Model CHS4210-8GT-110EAN 6937552482982
63 specifications
- TypeDIN rail
- Weight660 g
- ColourDark Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 660 g
- Colour
- Dark Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- CHS4210-8GT-110
- Part number
- CHS4210-8GT-110
- EAN / UPC
- 6937552482982
- Also known as
- Dahua Technology CHS4210-8GT-110 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Dark Blue
Specifications
63 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | No |
| Port mirroring | Yes |
| Address Resolution Protocol (ARP) entries (max) | 10 |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet buffer memory | 1.05 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | DIN rail |
| Product colour | Dark Blue |
| Housing material | Iron |
| Reset button | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 846267 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 48 - 57 V |
| Input current | 2.5 - 2.1 A |
| Power consumption (max) | 116.6 W |
| Power protection features | Static electricity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 10 |
| Total Power over Ethernet (PoE) budget | 110 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139.4 mm |
| Depth | 171.8 mm |
| Height | 42 mm |
| Weight | 660 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 253.5 mm |
| Package depth | 314.5 mm |
| Package height | 130.5 mm |
| Package weight | 1.6 kg |
