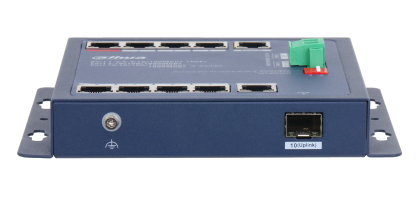

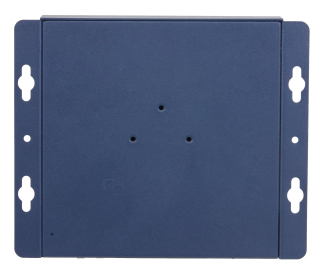

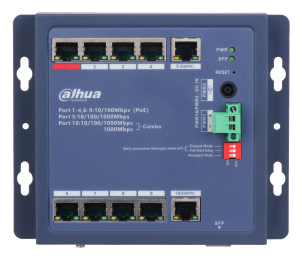

CHS4110-8ET-90-F network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Blue
Model CHS4110-8ET-90-F
59 specifications
- TypeDesktop
- Weight560 g
- ColourBlue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- Desktop
- Weight
- 560 g
- Colour
- Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- CHS4110-8ET-90-F
- Part number
- CHS4110-8ET-90-F
- Also known as
- Dahua Technology CHS4110-8ET-90-F network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Blue
Specifications
59 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 5.6 Gbit/s |
| Forwarding rate | 4.17 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | Desktop |
| Product colour | Blue |
| Housing material | Iron |
| Reset button | Yes |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| IK code | IK06 |
| International Protection (IP) code | IP30 |
| Suitable for outdoor use | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1014663.76 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Power consumption (max) | 2.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110.4 mm |
| Depth | 154.3 mm |
| Height | 30 mm |
| Weight | 560 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Package width | 239 mm |
| Package depth | 266 mm |
| Package height | 77 mm |
| Package weight | 1.3 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
