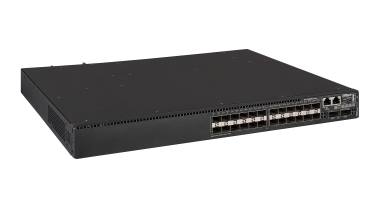

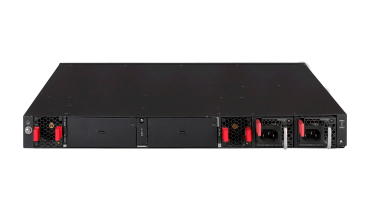

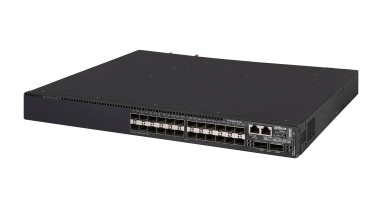

AS6600-24XF2QF network switch Managed L3
Model AS6600-24XF2QF
60 specifications
- Weight4.5 kg
- Switch typeManaged
- USB Type-A ports quantity1
- 10G supportYes
- MAC address table128000 entries
- Multicast Listener Discovery (MLD) snoopingv1/v2
Overview
- Weight
- 4.5 kg
- Switch type
- Managed
- USB Type-A ports quantity
- 1
- 10G support
- Yes
- MAC address table
- 128000 entries
- Multicast Listener Discovery (MLD) snooping
- v1/v2
- Brand
- Dahua Technology
- Category
- Network Switch
- Model
- AS6600-24XF2QF
- Part number
- AS6600-24XF2QF
- Also known as
- Dahua Technology AS6600-24XF2QF network switch Managed L3
Specifications
60 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Virtual Cable Test (VCT) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A ports quantity | 1 |
| Fiber ports quantity | 26 |
| Fiber optic connector | SFP+, QSFP+ |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3ae |
| 10G support | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| IPv4 routes | 64000 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 980 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| Packet buffer memory | 1.25 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping, DHCP relay, DHCP server |
| IGMP snooping | Yes |
| ARP attack prevention | Yes |
| Authentication type | IEEE 802.1x, RADIUS, NAC SSH V2.0, HWTACACS |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
Protocols
| Specification | Value |
|---|---|
| Device link detection protocol (DLDP) | Yes |
| Routing protocols | RIP-1, RIP-2, OSPFv2, OSPFv3, BGP4, BGP4+, VRRP, RIPng |
| IPv4 & IPv6 features | IPv6 Telnet, ICMPv6, IPv6 SSH, IPv6 tracert, IPv6 ping |
| IP Source Guard (IPSG) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Housing material | Metal |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 550504.8 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power consumption (typical) | 43 W |
| Power consumption (max) | 183 W |
| Surge protection voltage | 6 kV |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 360 mm |
| Height | 43.6 mm |
| Weight | 4.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 590 mm |
| Package depth | 480 mm |
| Package height | 135 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
