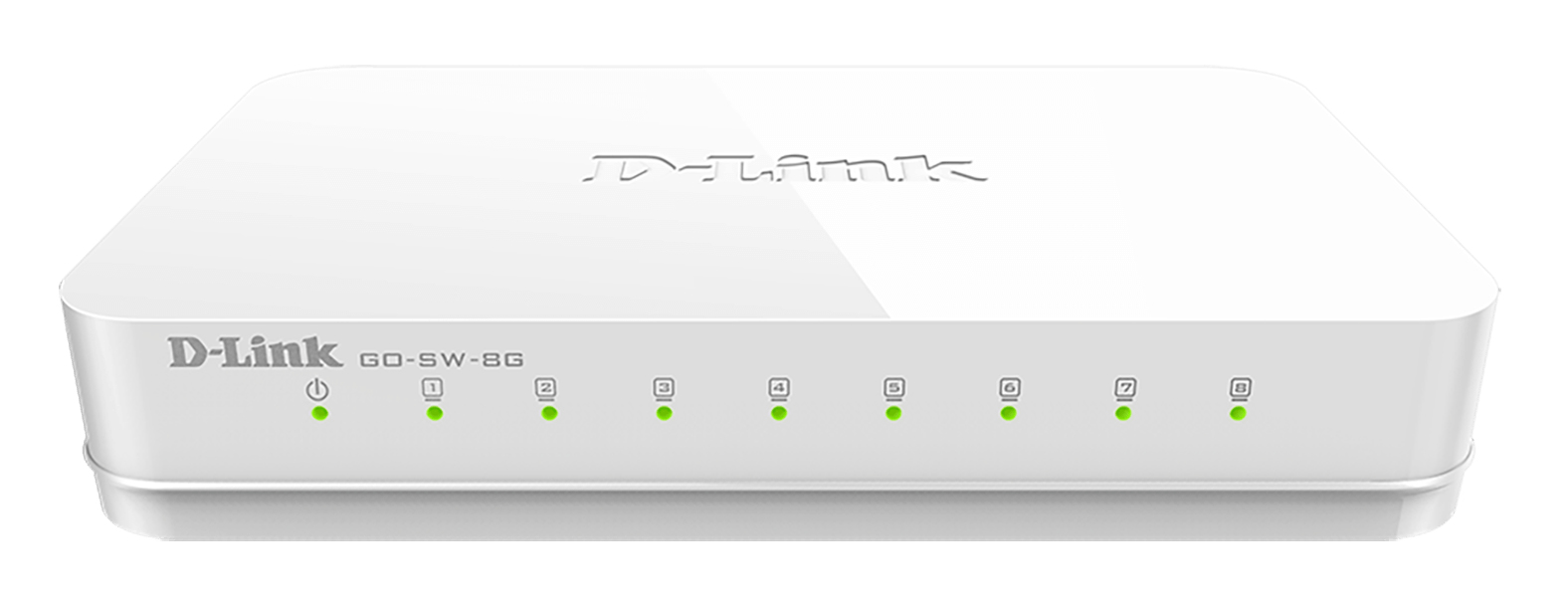

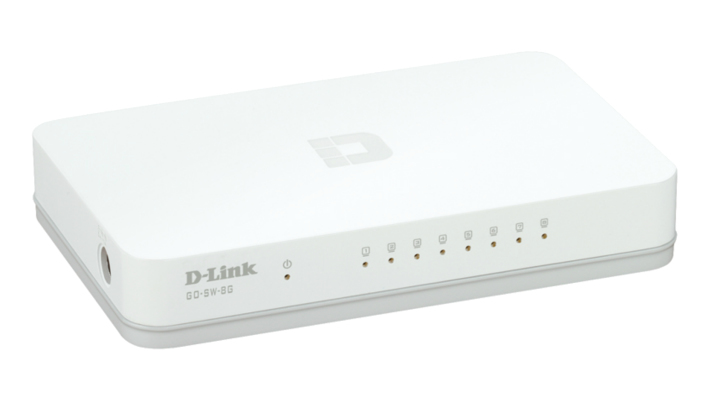

GO-SW-8G Managed L2 Gigabit Ethernet (10/100/1000) White
Model GO-SW-8GEAN 6213759767603
49 specifications
- Weight195 g
- ColourWhite
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 195 g
- Colour
- White
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- GO-SW-8G
- Part numbers
- GO-SW-8G, GO-SW-8G/B
- EAN / UPC
- 6213759767603, 790069365683, 5054484687887, 5054565012034 +15 more
- Also known as
- D-Link GO-SW-8G Managed L2 Gigabit Ethernet (10/100/1000) White
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|

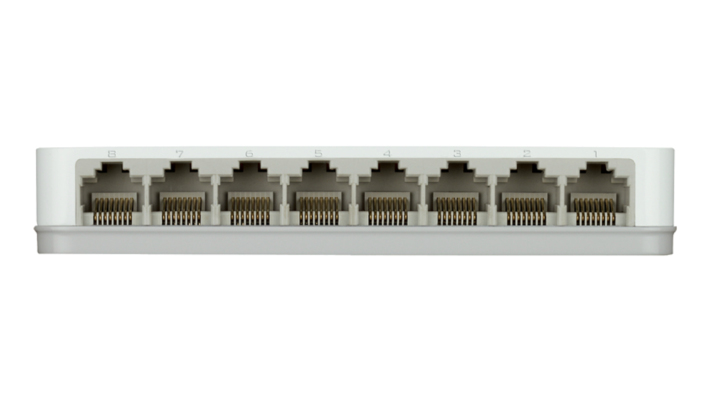

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |

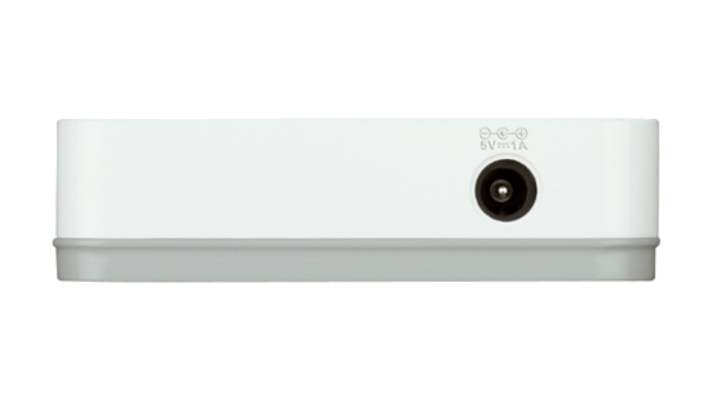

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 412433 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 5 V |
| Power consumption (typical) | 3.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 68.5 mm |
| Height | 25.4 mm |
| Weight | 195 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 104 mm |
| Package depth | 158 mm |
| Package height | 94 mm |
| Package weight | 301.3 g |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 100 pc(s) |
| Master (outer) cases per pallet (sea) | 100 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 371.5 kg |
| Pallet gross weight (sea) | 371.5 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.06 m |
| Pallet height (sea) | 2.06 m |
| Products per pallet (air) | 1000 pc(s) |
| Products per pallet (sea) | 1000 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 3.53 kg |
| Shipping (inner) case height | 19.3 cm |
| Shipping (inner) case length | 49.8 cm |
| Shipping (inner) case net weight | 1.95 kg |
| Shipping (inner) case width | 23 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, ICES-003, CE, C-Tick, VCCI, cUL/UL, CCC, Anatel, LVD |
