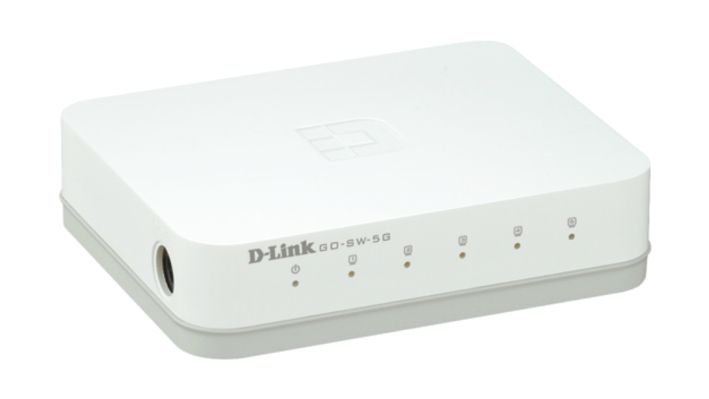

GO-SW-5G Unmanaged L2 Gigabit Ethernet (10/100/1000) White
Model GO-SW-5GPart no. GO-SW-5G/EEAN 7900693656801
46 specifications
- Weight105 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportYes
- MAC address table2000 entries
Overview
- Weight
- 105 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- Yes
- MAC address table
- 2000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- GO-SW-5G
- Part numbers
- GO-SW-5G/E, GO-SW-5G/B, GO-SW-5G
- EAN / UPC
- 7900693656801, 790069365669, 5054484687870, 5054565012003 +10 more
- Also known as
- D-Link GO-SW-5G Unmanaged L2 Gigabit Ethernet (10/100/1000) White
Specifications
46 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|

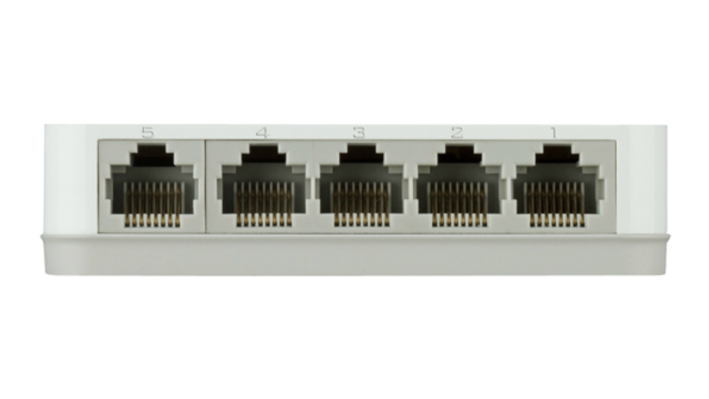

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

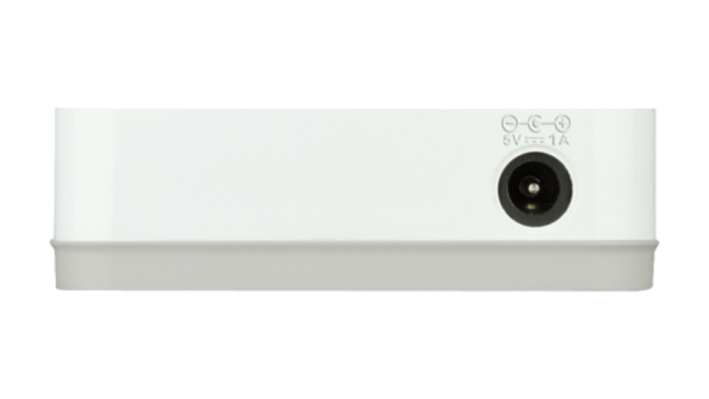

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 815700 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 5 V |
| Power consumption (typical) | 2.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 97 mm |
| Depth | 79 mm |
| Height | 28 mm |
| Weight | 105 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 116 mm |
| Package height | 82 mm |
| Package weight | 221.9 g |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 80 pc(s) |
| Master (outer) cases per pallet (sea) | 80 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 412.9 kg |
| Pallet gross weight (sea) | 412.9 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.02 m |
| Pallet height (sea) | 2.02 m |
| Products per pallet (air) | 1600 pc(s) |
| Products per pallet (sea) | 1600 pc(s) |
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case gross weight | 4.93 kg |
| Shipping (inner) case height | 20.7 cm |
| Shipping (inner) case length | 26.2 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case width | 23.4 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, ICES-003, CE, C-Tick, VCCI, cUL/UL, CCC, Anatel, LVD |
