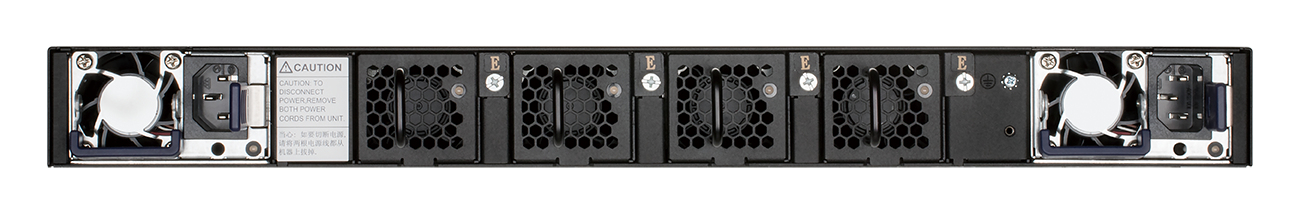

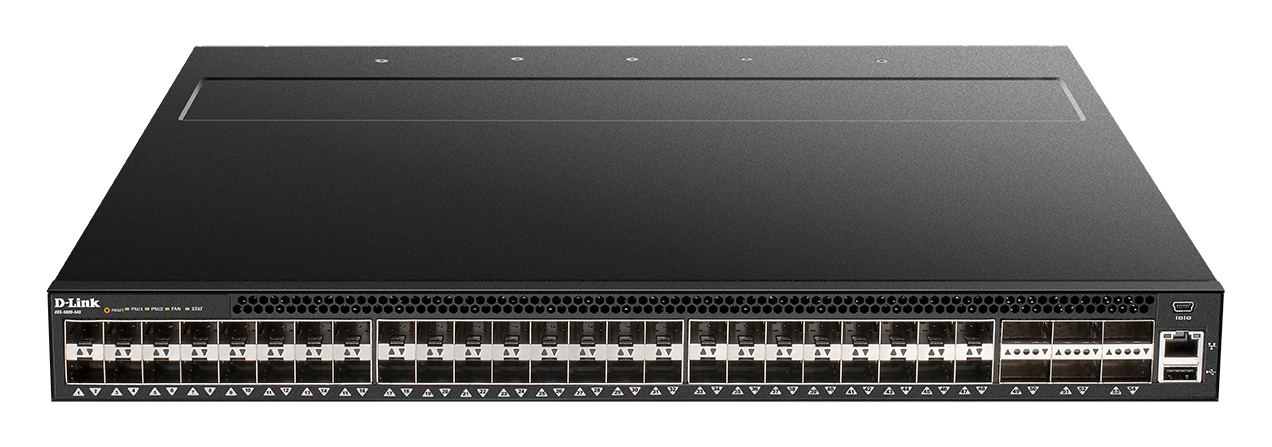

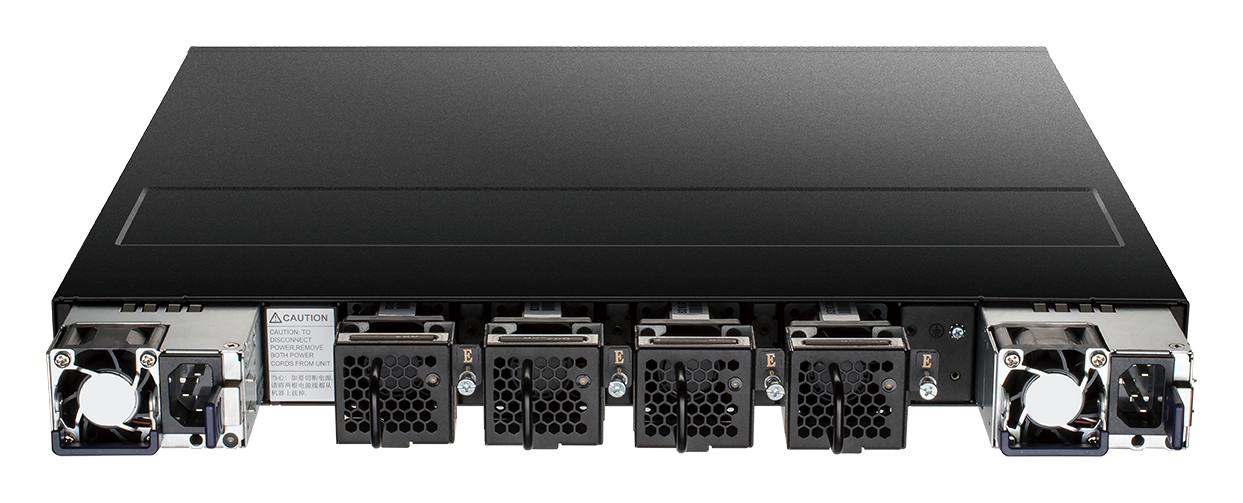

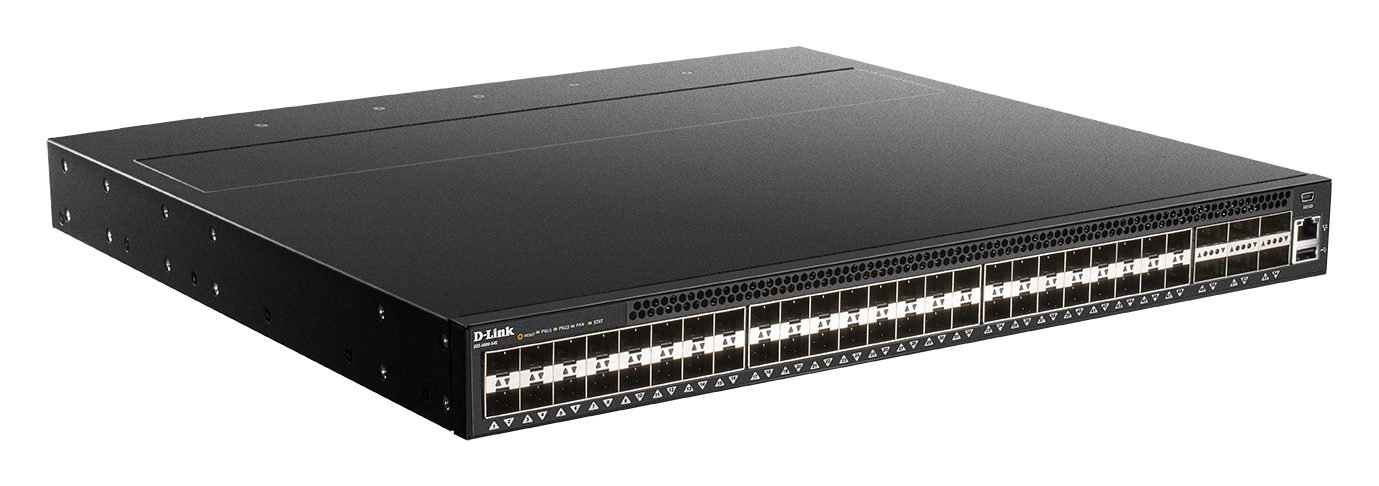

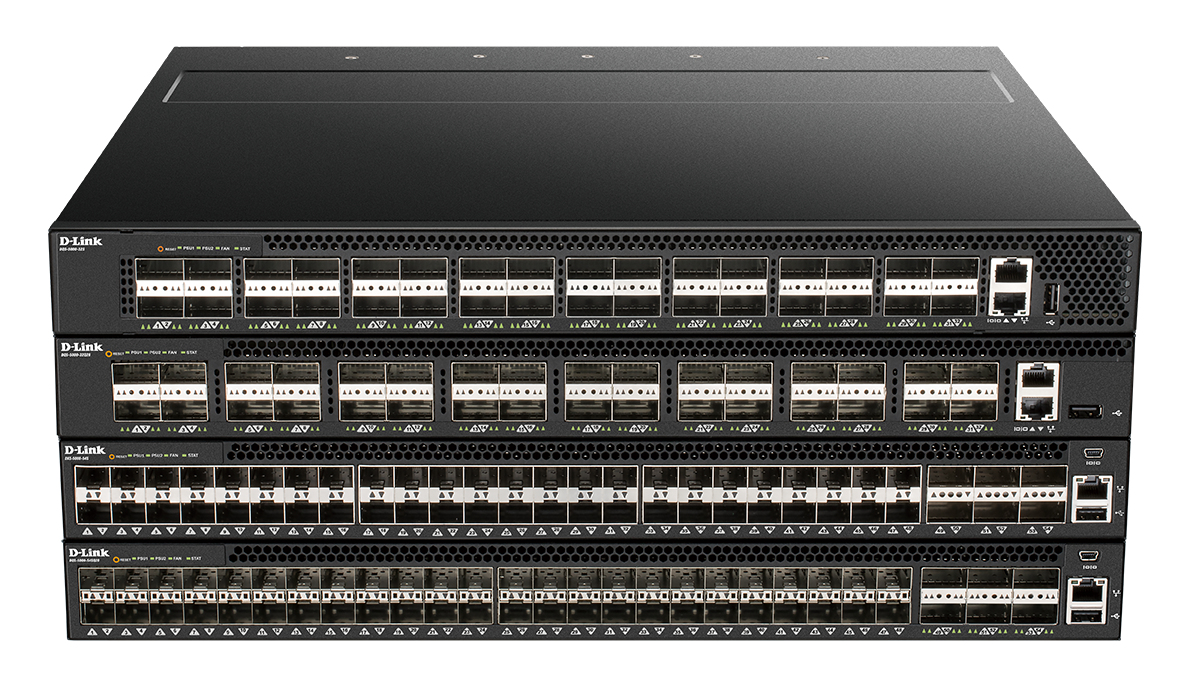

D-Link DXS-5000-54S/SI network switch Managed L3+
10G Ethernet (100/1000/10000) 1U
Model DXS-5000-54S/SIEAN 790069444227
71 specifications
- Noise74 dB
- Type1U
- Weight9 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Noise
- 74 dB
- Type
- 1U
- Weight
- 9 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DXS-5000-54S/SI
- Part number
- DXS-5000-54S/SI
- EAN / UPC
- 790069444227
- Also known as
- D-Link DXS-5000-54S/SI network switch Managed L3+ 10G Ethernet (100/1000/10000) 1U
Specifications
71 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed QSFP+ modules quantity | 6 |
| Console port | Micro-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 288000 entries |
| Switching capacity | 1440 Gbit/s |
| Forwarding rate | 1071 Mpps |
| Static route | Yes |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Deficit weighted round robin (DWRR), SP, Weighted random early detection (WRED) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Routing protocols | BGP4, BGP4+, OSPFv2, OSPFv3, RIP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| LED indicators | Yes |
| Redundant fans support | Yes |
| Number of fans | 4 fan(s) |
| Electromagnetic compatibility | FCC/IC, CCC, CB, CE, BSMI |
Performance
| Specification | Value |
|---|---|
| Noise level | 74 dB |
| Mean time between failures (MTBF) | 205000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 295 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1006.58 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 406 mm |
| Height | 44 mm |
| Weight | 9 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | cULus CCC BSMI CB CE |
What people say
Reviews & ratings
D-Link DXS-5000-54S/SI network switch Managed L3+
No reviews yet
Be the first to tell others how D-Link DXS-5000-54S/SI network switch Managed L3+ works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DXS-5000-54S/SI network switch Managed L3+
All network switch comparisons- D-Link DXS-5000-54S/SI network switch Managed L3+ vsD-Link DXS-5000-54S network switch Managed L3+Compare specs
- D-Link DXS-5000-54S/SI network switch Managed L3+ vsD-Link 10-Port Gigabit PoE Unmanaged SwitchCompare specs
- D-Link DXS-5000-54S/SI network switch Managed L3+ vsD-Link DGS-3130-54PS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, GreyCompare specs
- D-Link DXS-5000-54S/SI network switch Managed L3+ vsD-Link DGS-3130-30TS network switch Managed L3 Gigabit Ethernet (10/100/1000) Black, GreyCompare specs

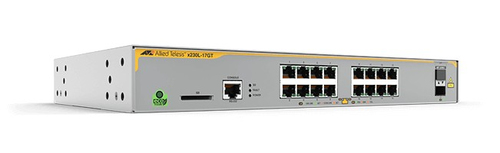

- D-Link DXS-5000-54S/SI network switch Managed L3+ vsAllied Telesis AT-x230L-17GT-50 Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs
