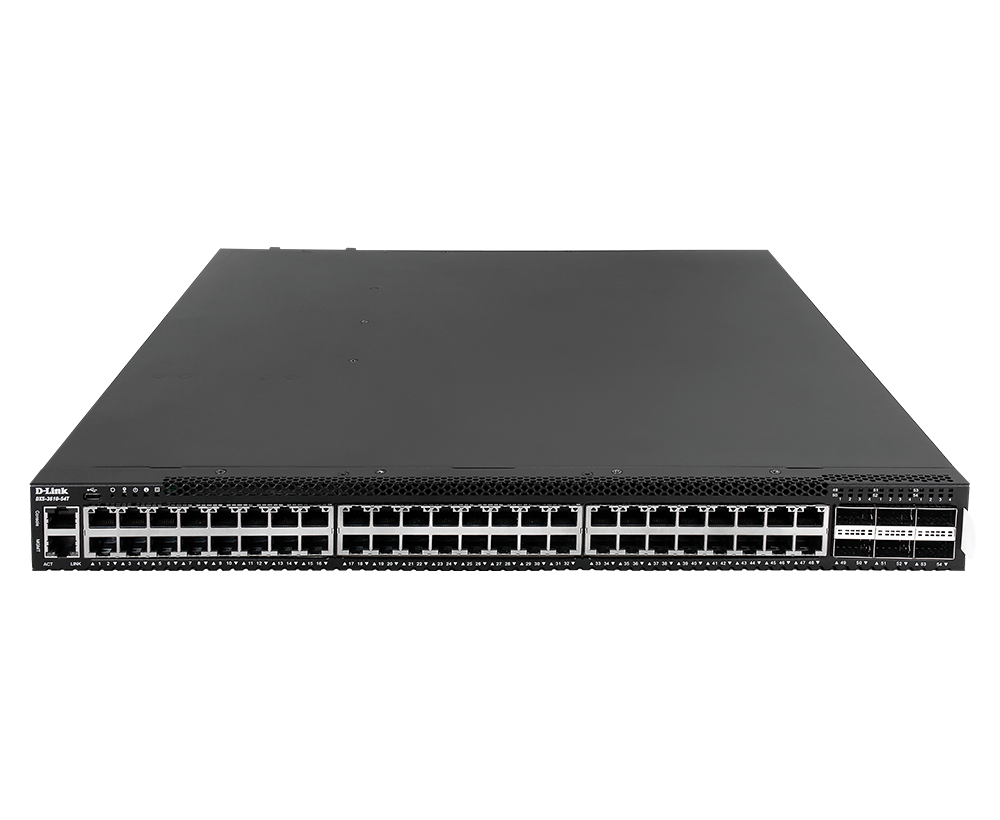

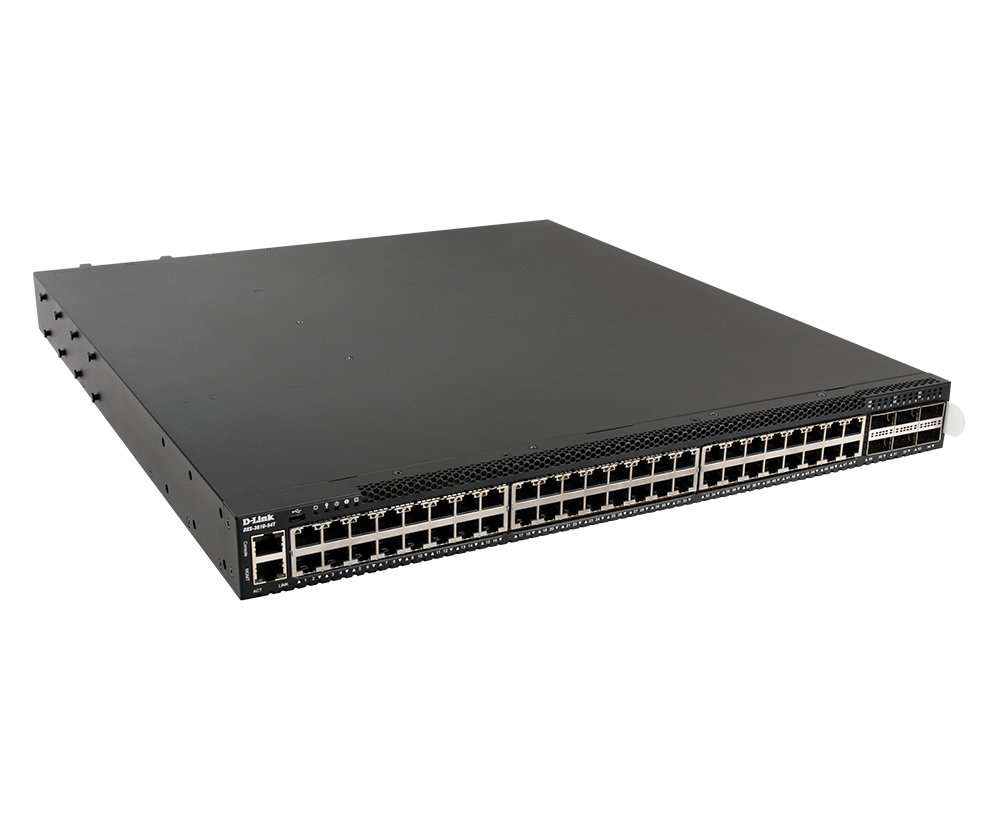

48-port 10GBase-T Layer 3 Stackable
10G Managed Switch
Model DXS-3610-54TPart no. DXS-3610-54T/SIEAN 790069454288
61 specifications
- Noise76.6 dB
- Type1U
- Weight9.88 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Noise
- 76.6 dB
- Type
- 1U
- Weight
- 9.88 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- D-Link
- Category
- Network Switch
- Model
- DXS-3610-54T
- Part number
- DXS-3610-54T/SI
- EAN / UPC
- 790069454288
- Also known as
- D-Link 48-port 10GBase-T Layer 3 Stackable 10G Managed Switch
Specifications
61 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 48 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 6 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 294912 entries |
| Switching capacity | 2211.84 Gbit/s |
| Forwarding rate | 1607.04 Mpps |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9436 |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 5 fan(s) |
| Electromagnetic compatibility | FCC, CE, C-Tick, IC, VCCI |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 12 |
| Virtual stacking (units) | 32 |
| Noise level | 76.6 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 108.2 W |
| Power consumption (max) | 330.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1126 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.88 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, cUL, LVD |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
