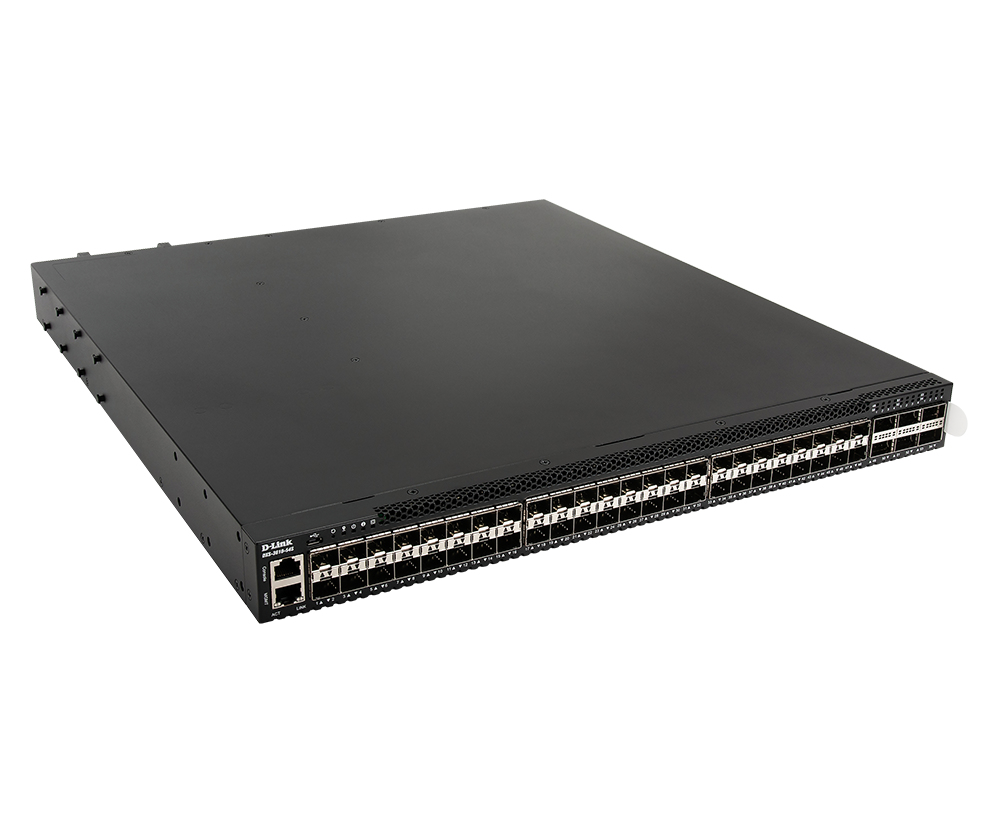

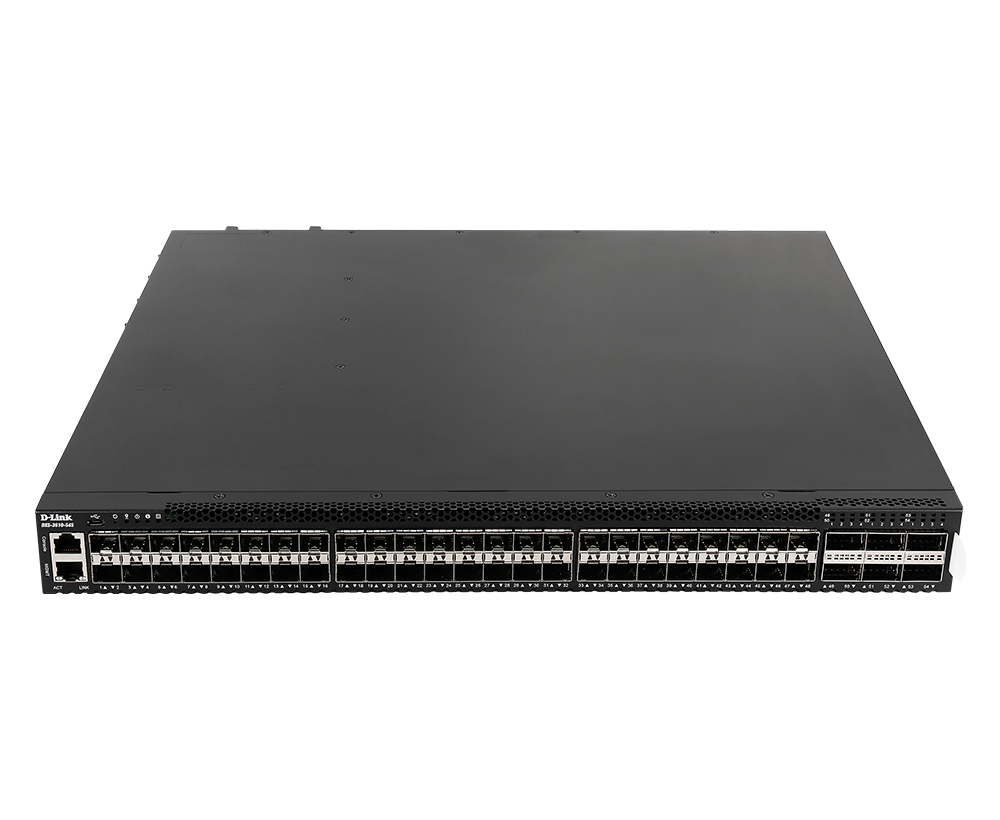

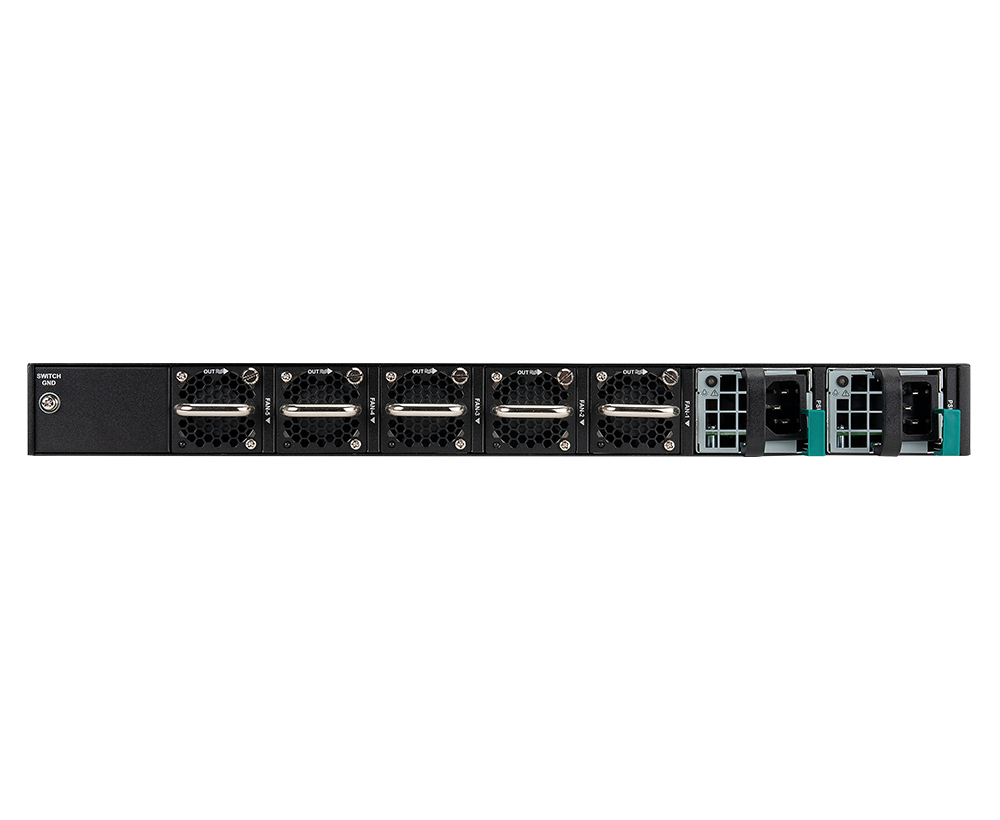

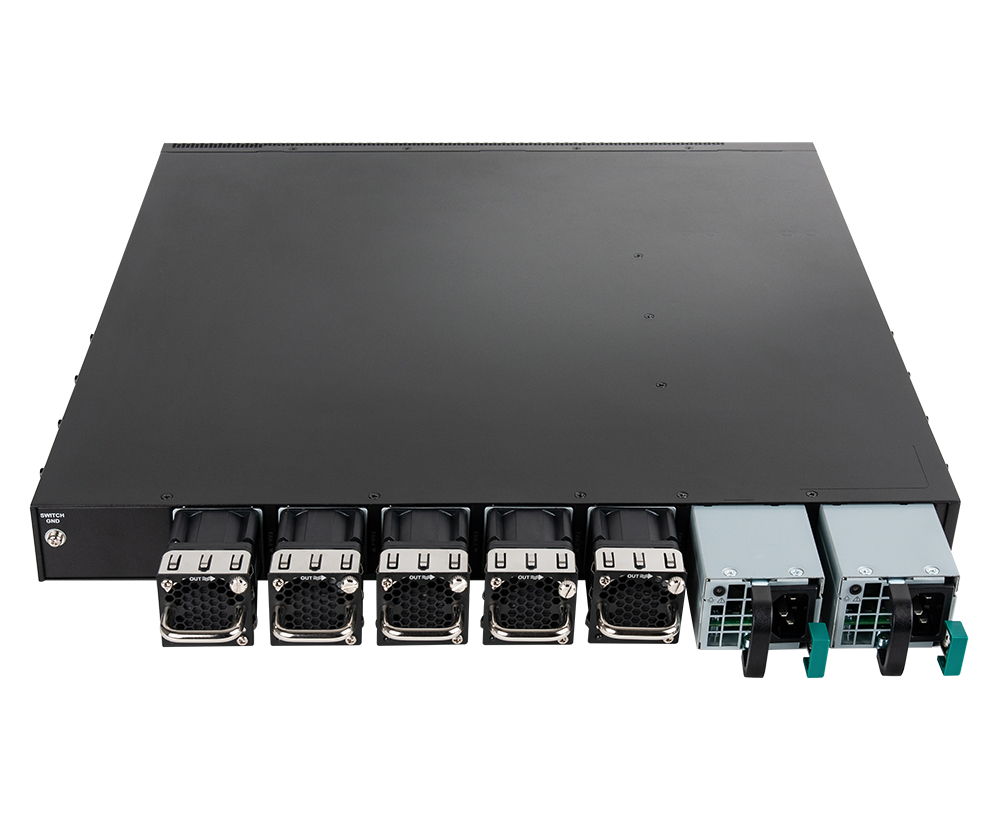

DXS-3610-54S network switch Managed L3 1U Black
Model DXS-3610-54SEAN 790069452116
58 specifications
- Noise79.4 dB
- Type1U
- Weight9.8 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports typeNo
Overview
- Noise
- 79.4 dB
- Type
- 1U
- Weight
- 9.8 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports type
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DXS-3610-54S
- Part numbers
- DXS-3610-54S, DXS-3610-54S/SI
- EAN / UPC
- 790069452116
- Also known as
- D-Link DXS-3610-54S network switch Managed L3 1U Black
Specifications
58 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 288000 entries |
| Switching capacity | 2160 Gbit/s |
| Forwarding rate | 1607.04 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9436 |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 5 fan(s) |
Performance
| Specification | Value |
|---|---|
| Virtual stacking (units) | 32 |
| Noise level | 79.4 dB |
| Mean time between failures (MTBF) | 94262 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 120.6 W |
| Power consumption (max) | 320.8 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1083 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 487.4 mm |
| Height | 43.5 mm |
| Weight | 9.8 kg |
