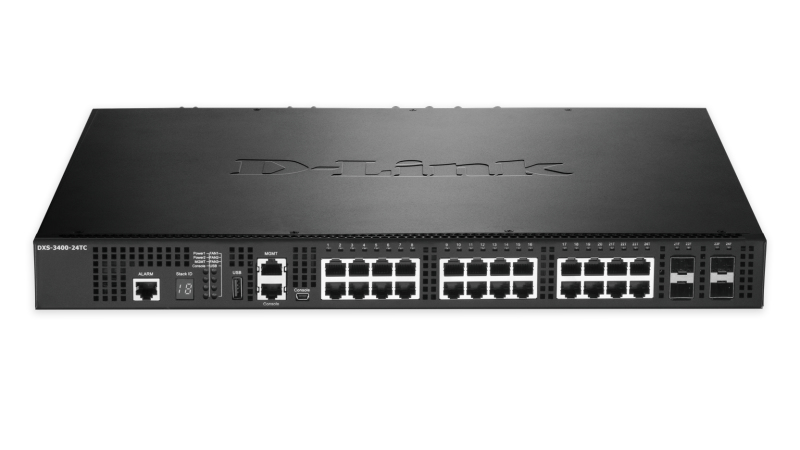

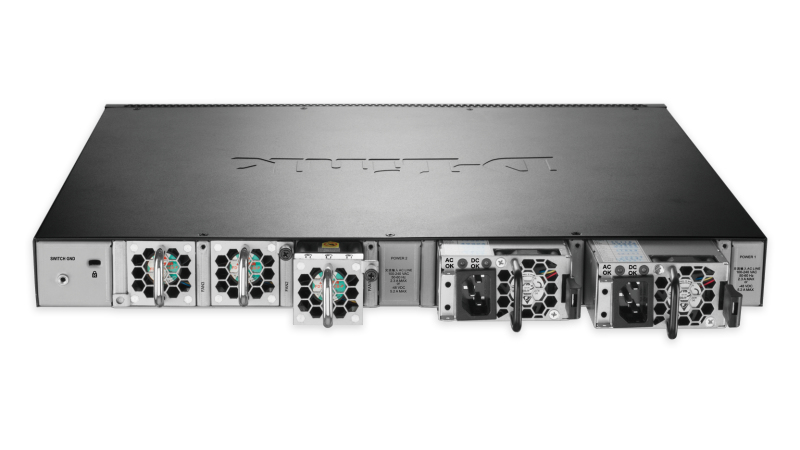

D-Link 20-Port 10GBASE-T/SFP+ and 10GBASE-T/SFP+ Combo Port Managed Switch

20-Port 10GBASE-T/SFP+ and 10GBASE-T/SFP+ Combo Port Managed Switch

Model DXS-3400-24TCEAN 790069423611

88 specifications

Type1U
Weight6.65 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity20
10G supportYes

See all specifications

Overview

Type: 1U
Weight: 6.65 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 20
10G support: Yes

Brand: D-Link
Category: Network Switch
Model: DXS-3400-24TC
Part number: DXS-3400-24TC
EAN / UPC: 790069423611
Also known as: D-Link 20-Port 10GBASE-T/SFP+ and 10GBASE-T/SFP+ Combo Port Managed Switch

Specifications

88 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC1065, RFC1066, RFC1155, RFC1156, RFC2578, RFC1212, RFC1213, RFC1215, RFC1493, RFC4188,RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576, RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Console port	RJ-45
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	48000 entries
Switching capacity	480 Gbit/s
Forwarding rate	357.12 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS

Multicast features

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Number of fans	3 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC

Performance

Specification	Value
Physical stacking (units)	4
Virtual stacking (units)	32
Built-in processor	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2 A
Power consumption (max)	159.8 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	557.94 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	380 mm
Height	44 mm
Weight	6.65 kg

Packaging data

Specification	Value
Package width	527 mm
Package depth	575 mm
Package height	145 mm
Package weight	9.23 kg

Technical details

Specification	Value
Master (outer) cases per pallet (air)	28 pc(s)
Master (outer) cases per pallet (sea)	28 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	313.9 kg
Pallet gross weight (sea)	313.9 kg
Pallet gross width	120 cm
Pallet height (air)	138.1 cm
Pallet height (sea)	138.1 cm
Products per pallet (air)	28 pc(s)
Products per pallet (sea)	28 pc(s)
Products per shipping (inner) case	1 pc(s)
Shipping (inner) case gross weight	10.6 kg
Shipping (inner) case height	17.8 cm
Shipping (inner) case length	59.5 cm
Shipping (inner) case net weight	7.53 kg
Shipping (inner) case width	54.5 cm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
