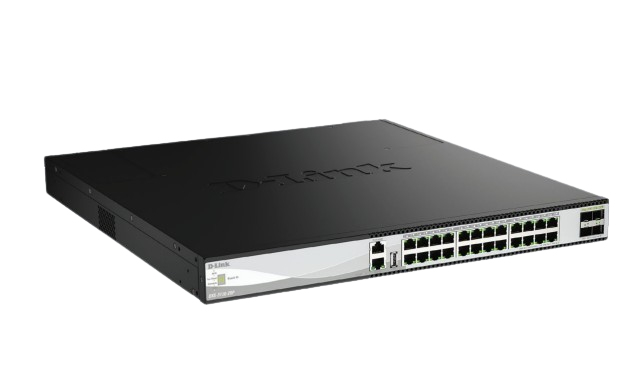

DXS-3130-28P network switch Managed L3
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Model DXS-3130-28PEAN 790069800641
42 specifications
- Weight6.48 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table32768 entries
Overview
- Weight
- 6.48 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 32768 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DXS-3130-28P
- Part numbers
- DXS-3130-28P, DXS-3130-28P/E
- EAN / UPC
- 790069800641, 790069801716, 790069474125
- Also known as
- D-Link DXS-3130-28P network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Specifications
42 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1s, IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32768 entries |
| Switching capacity | 680 Gbit/s |
| Forwarding rate | 298 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Security algorithms | SNMP |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | OSPFv2, OSPFv3, VRRP |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv6 TFTP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 286.4952 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 3439.64 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 470 mm |
| Height | 44 mm |
| Weight | 6.48 kg |
