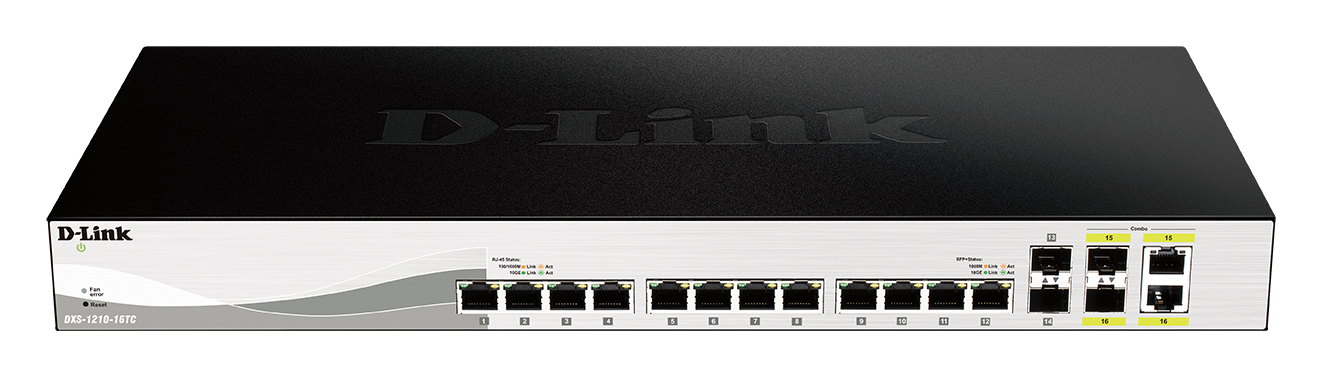

D-Link 12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch

12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch

Model DXS-1210-16TCEAN 790069428548

77 specifications

Weight3.15 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity12
10G supportYes
Fiber ethernet cabling technology1000BASE-X

See all specifications

Overview

Weight: 3.15 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 12
10G support: Yes
Fiber ethernet cabling technology: 1000BASE-X

Brand: D-Link
Category: Network Switch
Model: DXS-1210-16TC
Part numbers: DXS-1210-16TC, DXS 1210 16TC, DXS-1210-16TC+DXE-820T
EAN / UPC: 790069428548
Also known as: D-Link 12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch

Specifications

77 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 783, RFC 951, RFC 1157, RFC 1213, RFC 1215, RFC 1350, RFC 1493, RFC 1769, RFC 1542, RFC 1901, RFC 1907, RFC 1908, RFC 2131, RFC 2138, RFC 2139, RFC 2233, RFC-2246, RFC 2475, RFC 2570, RFC 2575, RFC 2598, RFC 2618, RFC 2819, RFC 2865, RFC 3164, RFC 3195, RFC 3411-17

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Combo SFP ports quantity	2
SFP+ module slots quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, MAC address-based VLAN, Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	320 Gbit/s
Forwarding rate	238.08 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	256
IGMP snooping	Yes
IP-MAC-Port binding	Yes
Security algorithms	802.1x RADIUS, SNMP, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v

Protocols

Specification	Value
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Safety	cUL, CB, CE, CCC, BSMI

Performance

Specification	Value
Built-in processor	Yes

Power

Specification	Value
AC input voltage	120 - 230 V
AC input frequency	50 - 60 Hz
Power consumption (max)	90.81 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	210 mm
Height	44 mm
Weight	3.15 kg

Packaging data

Specification	Value
Package width	349 mm
Package depth	546 mm
Package height	96 mm
Package weight	4.53 kg

Technical details

Specification	Value
Master (outer) cases per pallet (air)	18 pc(s)
Master (outer) cases per pallet (sea)	30 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	281.1 kg
Pallet gross weight (sea)	456 kg
Pallet gross width	120 cm
Pallet height (air)	128.4 cm
Pallet height (sea)	2.05 m
Products per pallet (air)	54 pc(s)
Products per pallet (sea)	90 pc(s)
Products per shipping (inner) case	3 pc(s)
Shipping (inner) case gross weight	14.5 kg
Shipping (inner) case height	38.3 cm
Shipping (inner) case length	56.2 cm
Shipping (inner) case net weight	13.6 kg
Shipping (inner) case width	31.4 cm

Certificates

Specification	Value
Certification	CE, FCC, C-Ticket, VCCI, BSMI, CCC

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
