D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch
Model DXS-1210-10TSPart no. DXS-1210-10TS+DEM-431XTEAN 5055309625237
59 specifications
- Noise46.6 dB
- Type1U
- Weight2.17 kg
- ColourBlack, Silver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Noise
- 46.6 dB
- Type
- 1U
- Weight
- 2.17 kg
- Colour
- Black, Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- D-Link
- Category
- Network Switch
- Model
- DXS-1210-10TS
- Part numbers
- DXS-1210-10TS+DEM-431XT, DXS-1210-10TS/KIT2, DXS-1210-10TS/E, DXS-1210-10TS, DXS-1210-10TS+DXE-820T
- EAN / UPC
- 5055309625237, 790069467639, 790069409325
- Also known as
- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch
Specifications
59 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Cable types supported | Cat6 |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 200 Gbit/s |
| Forwarding rate | 148.8 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 46.6 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 43.26 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.17 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB |
What people say
Reviews & ratings
D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch
No reviews yet
Be the first to tell others how D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch
All network switch comparisons- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsD-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed SwitchCompare specs
- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsD-Link GO-SW-16GE network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsD-Link DGS-3620-52P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsD-Link DES-1024DG network switch Unmanaged Fast Ethernet (10/100) Grey, Orange, SilverCompare specs
- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsAllied Telesis GS924MX Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs
- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsLenovo 00FM518 network switch Managed L2/L3 BlackCompare specs

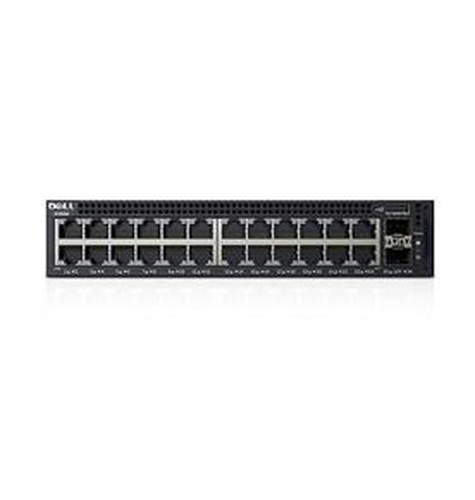

- D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch vsDell X-Series X1026P Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
