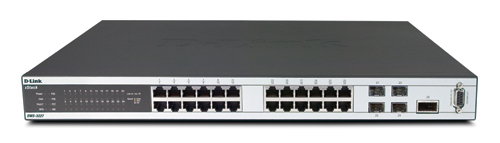

D-Link DWS-3227 network switch Managed L2+ 1U
Model DWS-3227EAN 790069296581
45 specifications
- Speed1000 Gbit/s
- Type1U
- Weight4.6 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Port mirroringYes
Overview
- Speed
- 1000 Gbit/s
- Type
- 1U
- Weight
- 4.6 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Port mirroring
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DWS-3227
- Part number
- DWS-3227
- EAN / UPC
- 790069296581, 7900692965812
- Also known as
- D-Link DWS-3227 network switch Managed L2+ 1U
Specifications
45 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 4 |
| CX4 ports quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 120 Gbit/s |
| Maximum data transfer rate | 1000 Gbit/s |
| Jumbo frames support | No |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 128-bit WEP, 64-bit WEP, SSH, WPA, WPA2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, RMON, SNMP, SNTP, TFTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 311.2 x 439 x 44.9 mm |
| Input frequency | 50 - 60 Hz |
| Networking features | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.6 kg |
